Refrigerated air dryers with R134 and R410A refrigerant
Model No. | Air flow | Connection | Refrigerant | Voltage | 尺寸 (mm) | 重量 (kg) |
m³/min |

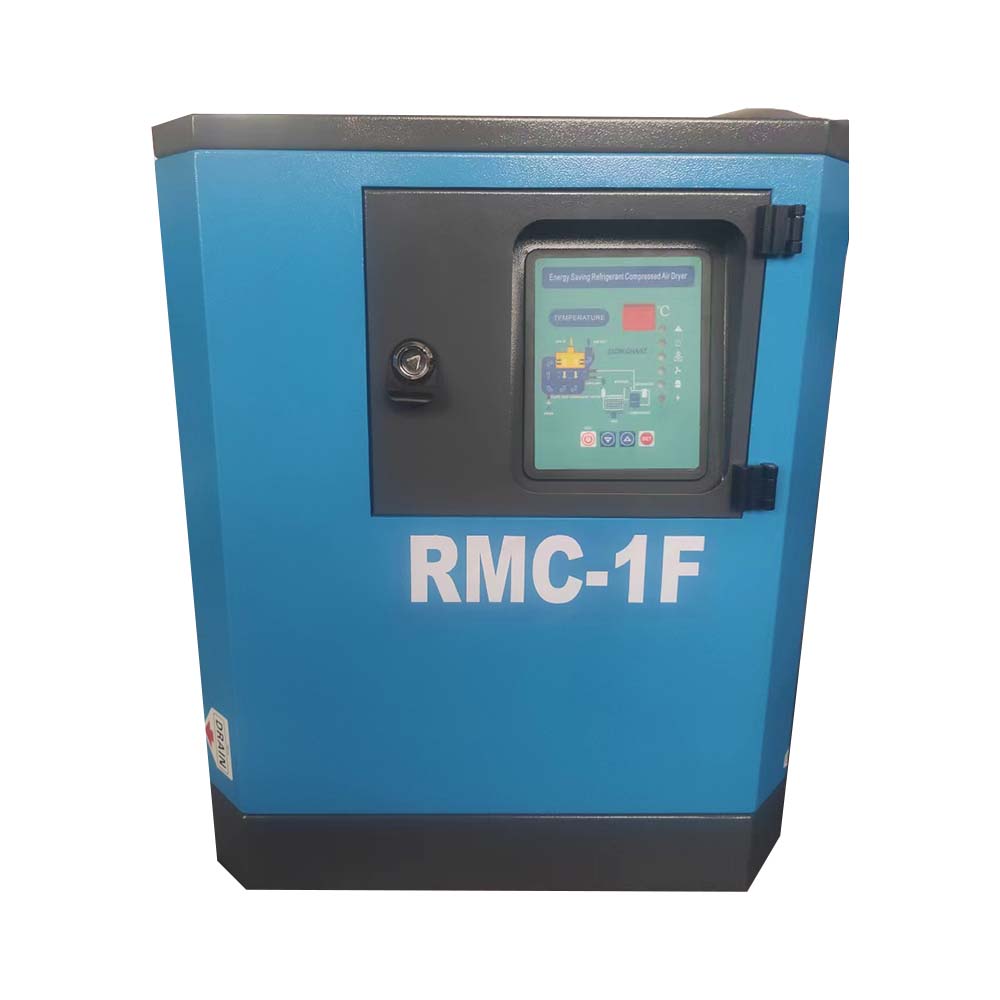

RMC-1F | 1.2 | ZG1" | R134A | 220V/50HZ | 711×474×550 | 50 |
RMC-2F | 2.4 | ZG1" | R134A | 220V/50HZ | 751×486×570 | 55 |
RMC-3F | 3.8 | ZG1" | R410A | 220V/50HZ | 871×560×730 | 60 |
RMC-6F | 6.5 | ZG1½" | R410A | 220V/50HZ | 991×625×945 | 90 |
RMC-8F | 8.5 | ZG1½" | R410A | 220V/50HZ | 991×625×945 | 110 |
RMC-10F | 10.7 | ZG2" | R410A | 220V/50HZ | 1301×664×935 | 120 |

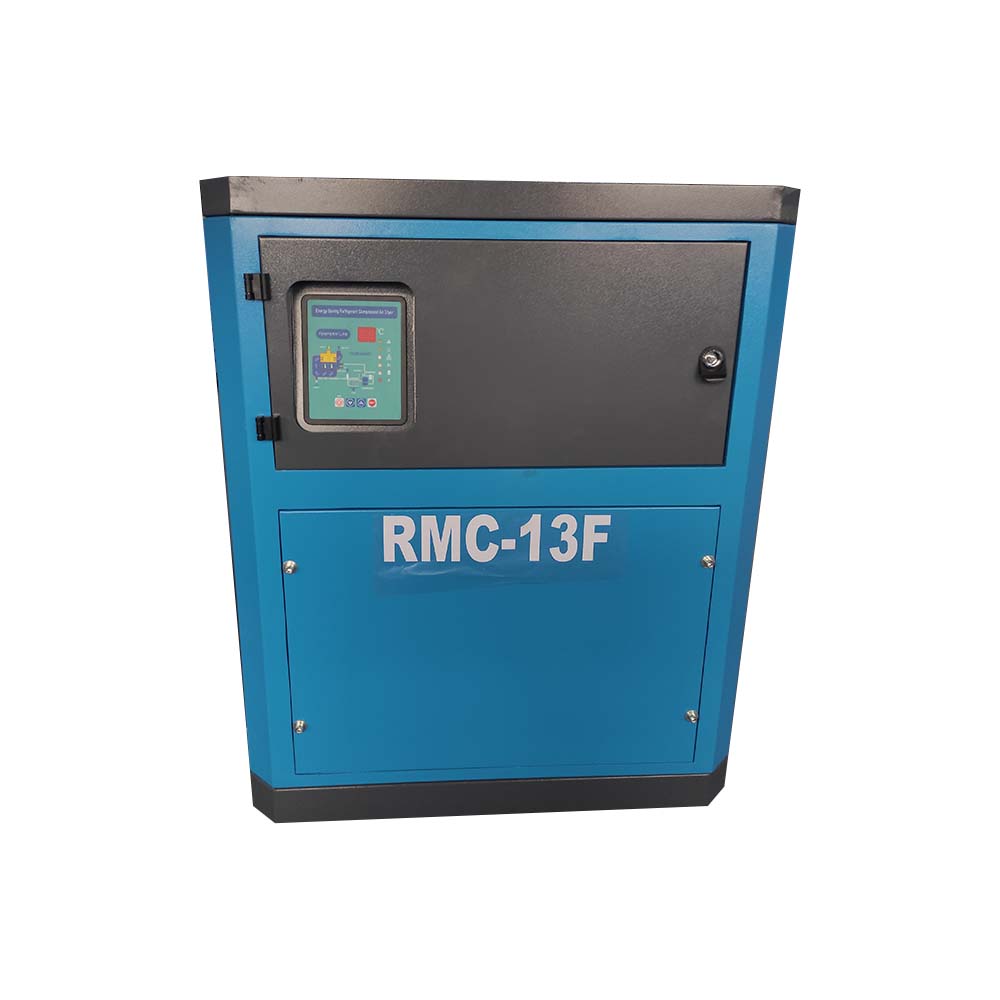

RMC-13F | 13.8 | ZG2" | R410A | 220V/50HZ | 1301×710×935 | 150 |
RMC-15F | 17 | ZG2½" | R410A | 220V/50HZ | 1492×922×1135 | 250 |
RMC-20F | 23 | ZG2½" | R407C | 380V/50HZ | 1553×882×1235 | 270 |
RMC-25F | 27 | DN80 | R407C | 380V/50HZ | 1564×958×1339 | 290 |
RMC-30F | 33 | DN80 | R407C | 380V/50HZ | 1803×1083×1489 | 310 |
RMC-40F | 45 | DN100 | R407C | 380V/50HZ | 1866×1108×1539 | 330 |
RMC-50F | 55 | DN100 | R407C | 380V/50HZ | 2206×1109×1547 | 365 |
