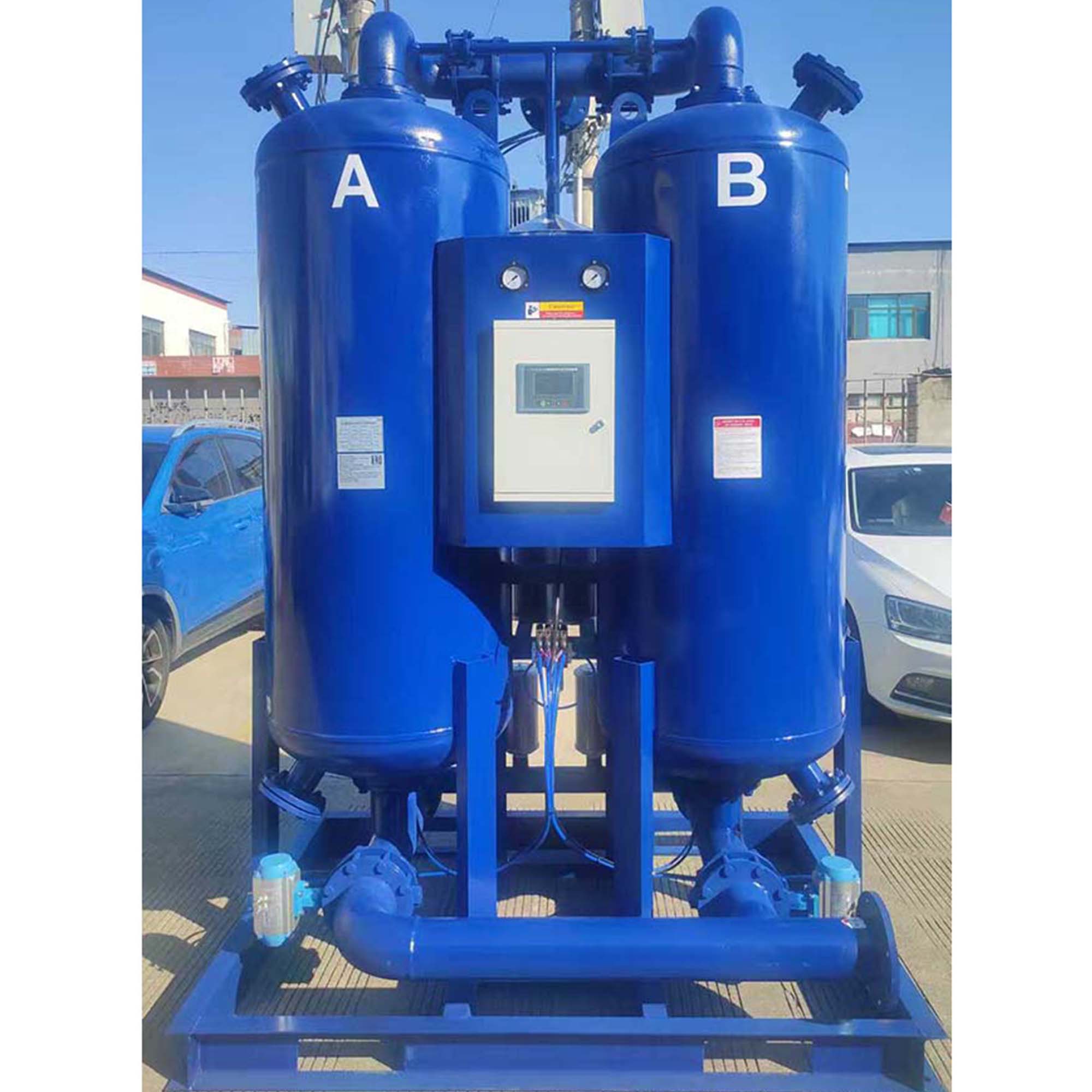

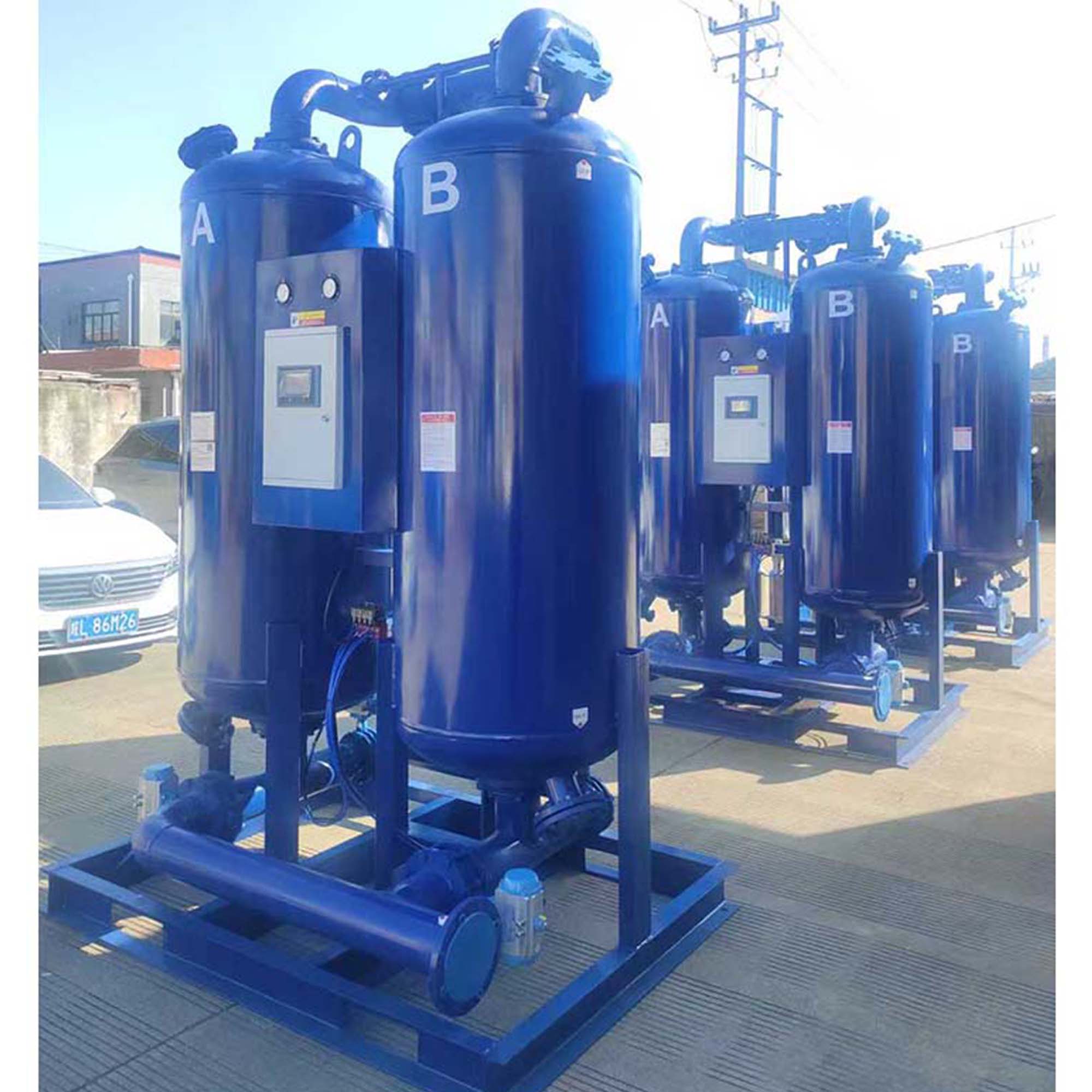

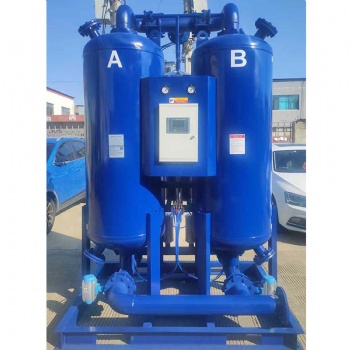

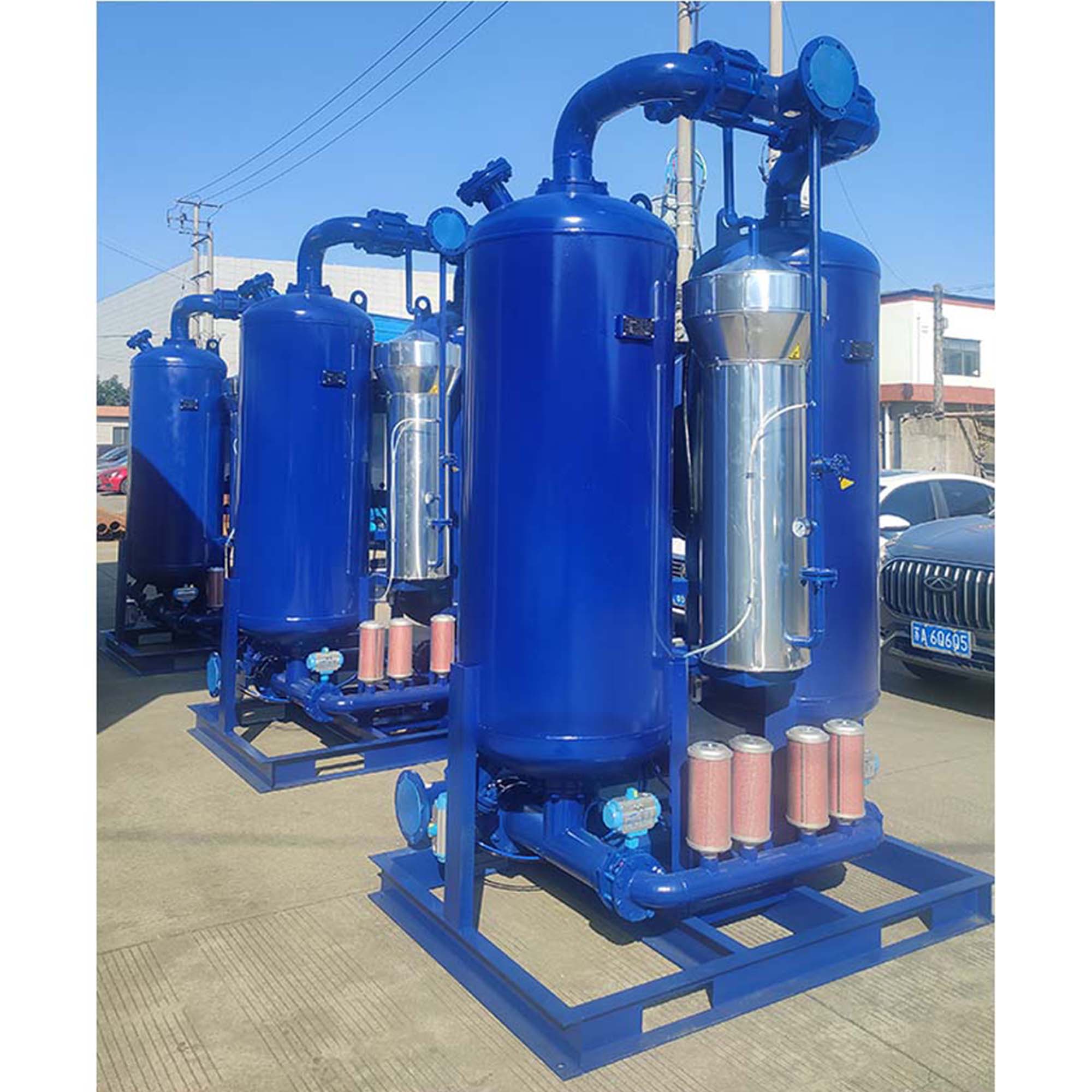

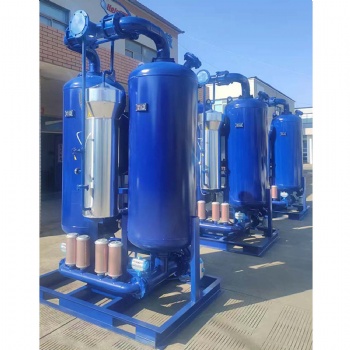

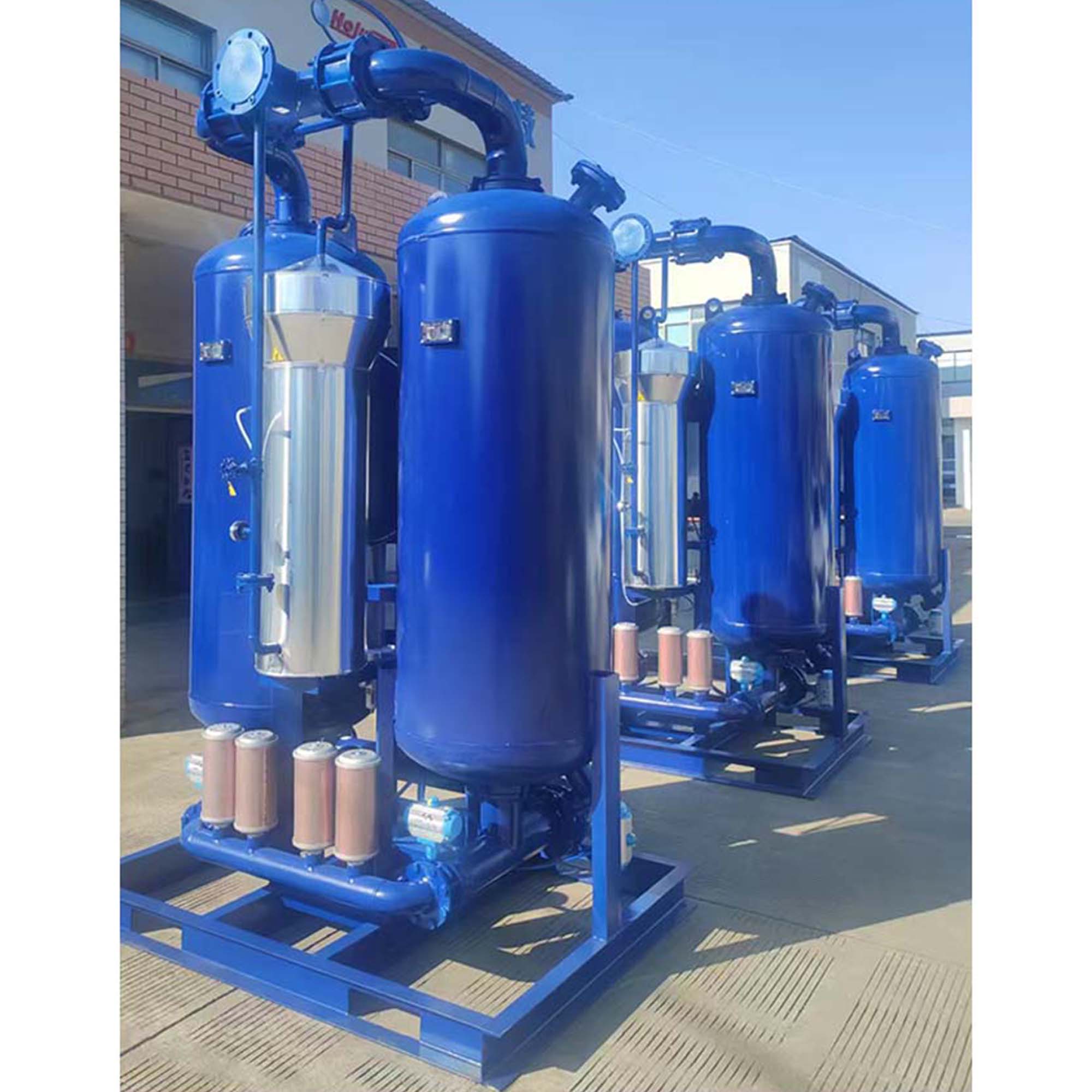

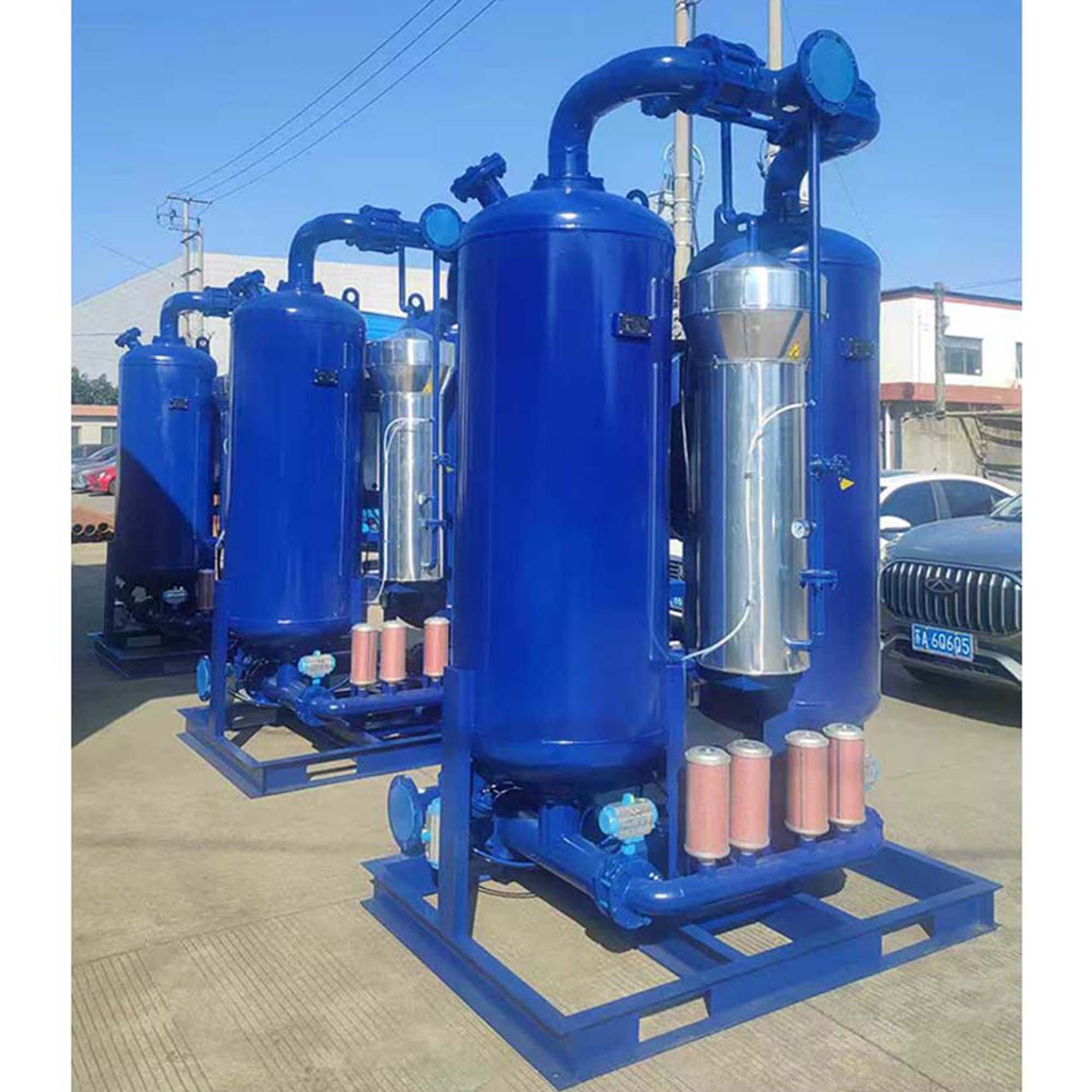

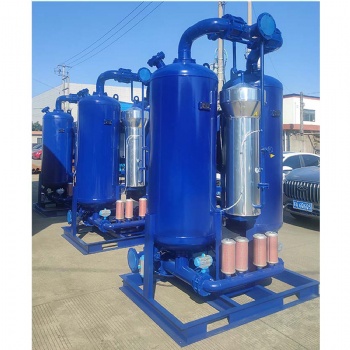

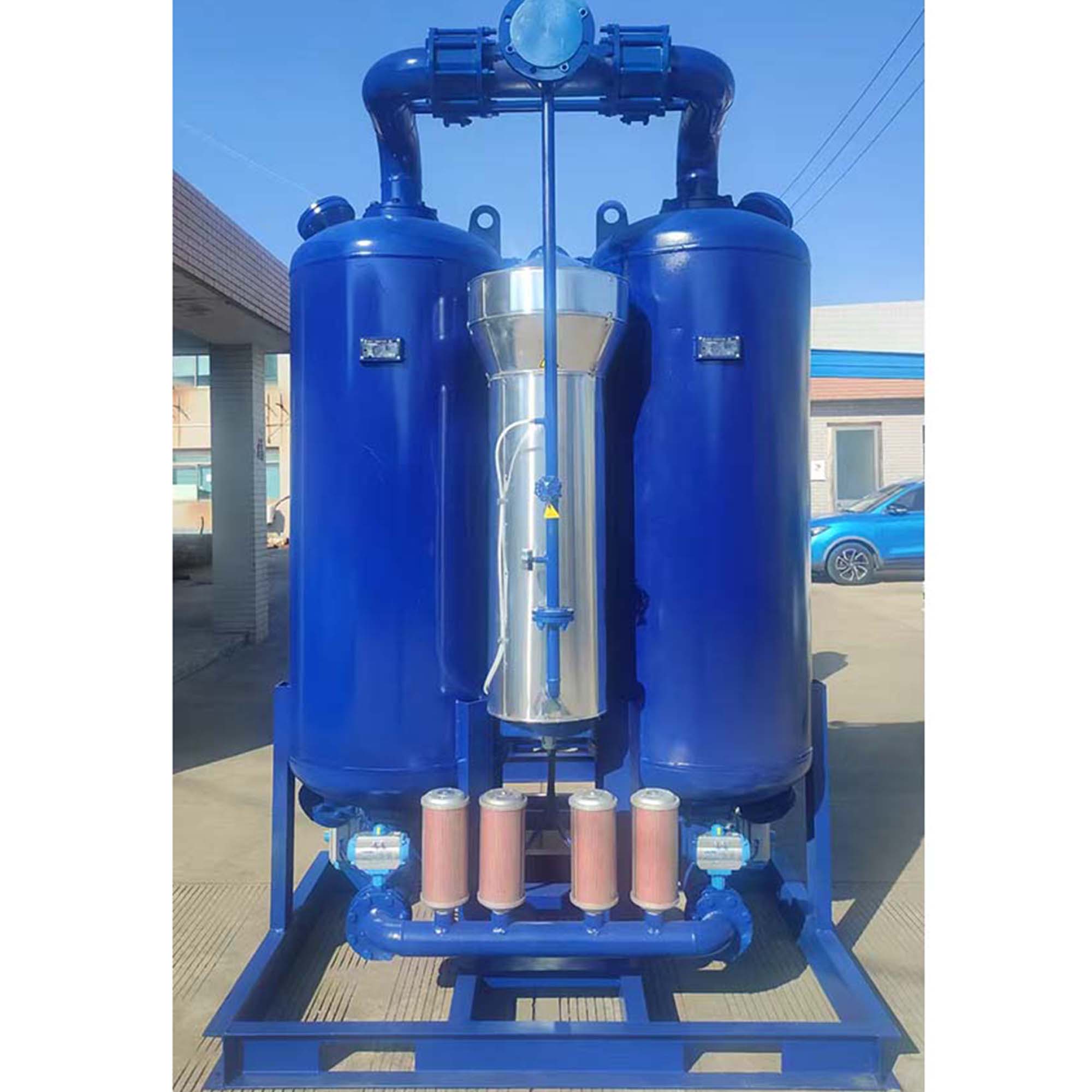

RMC-13T 13.8M3/Min 460cfm Heated Type Adsorption Air Dryer With Dew Point -70℃

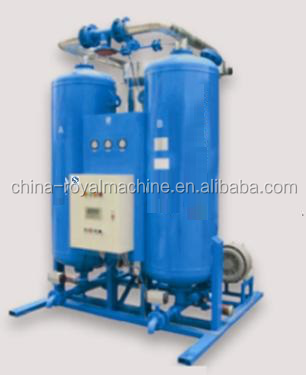

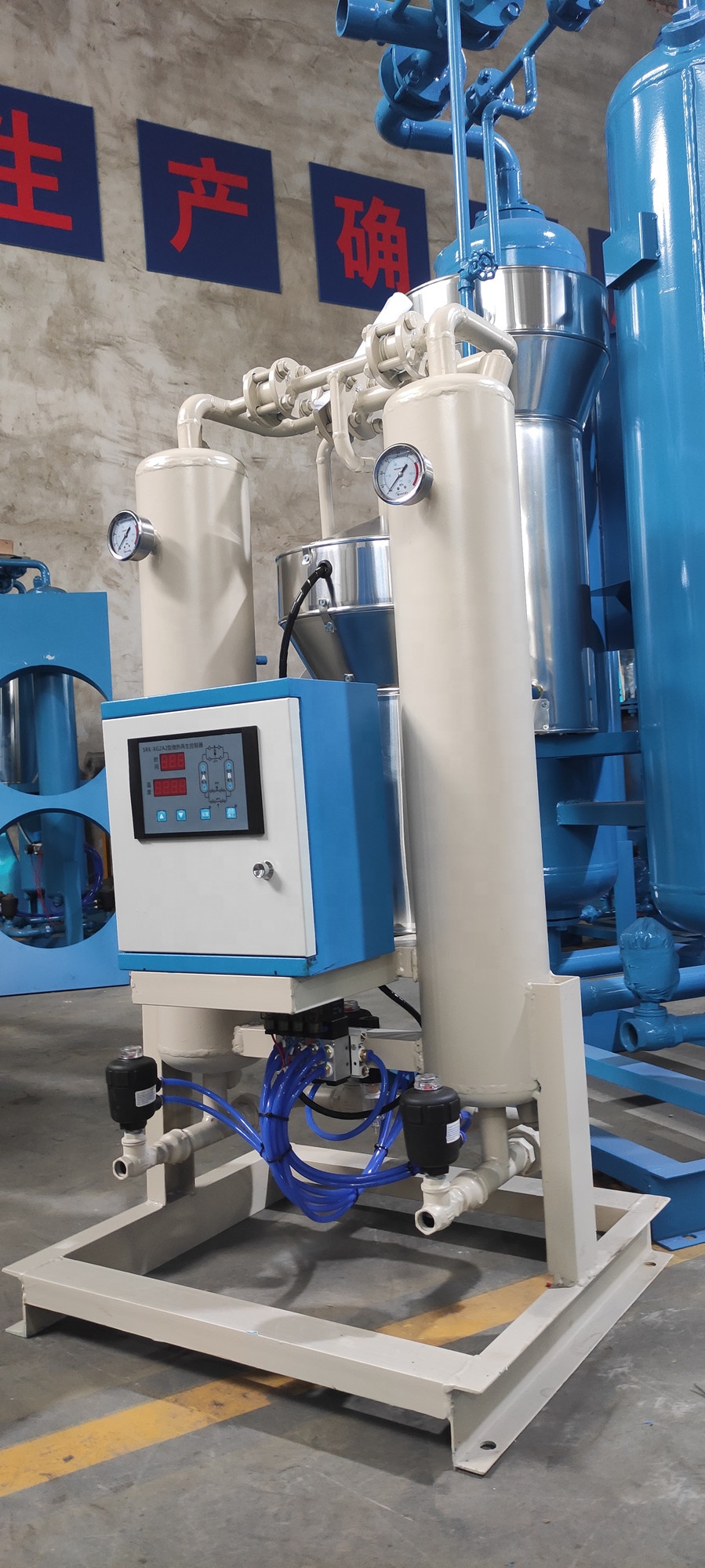

Heatless Pure Desiccant Air Dryer

Working Elements:

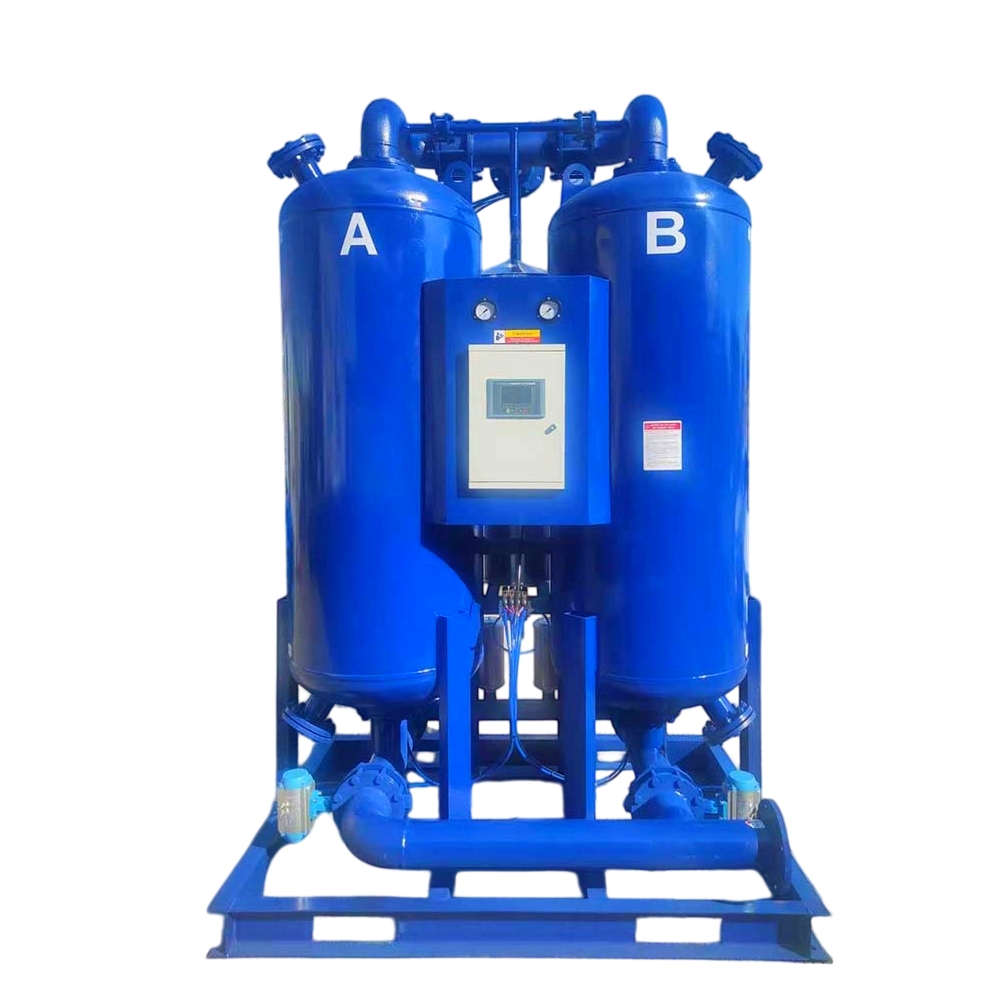

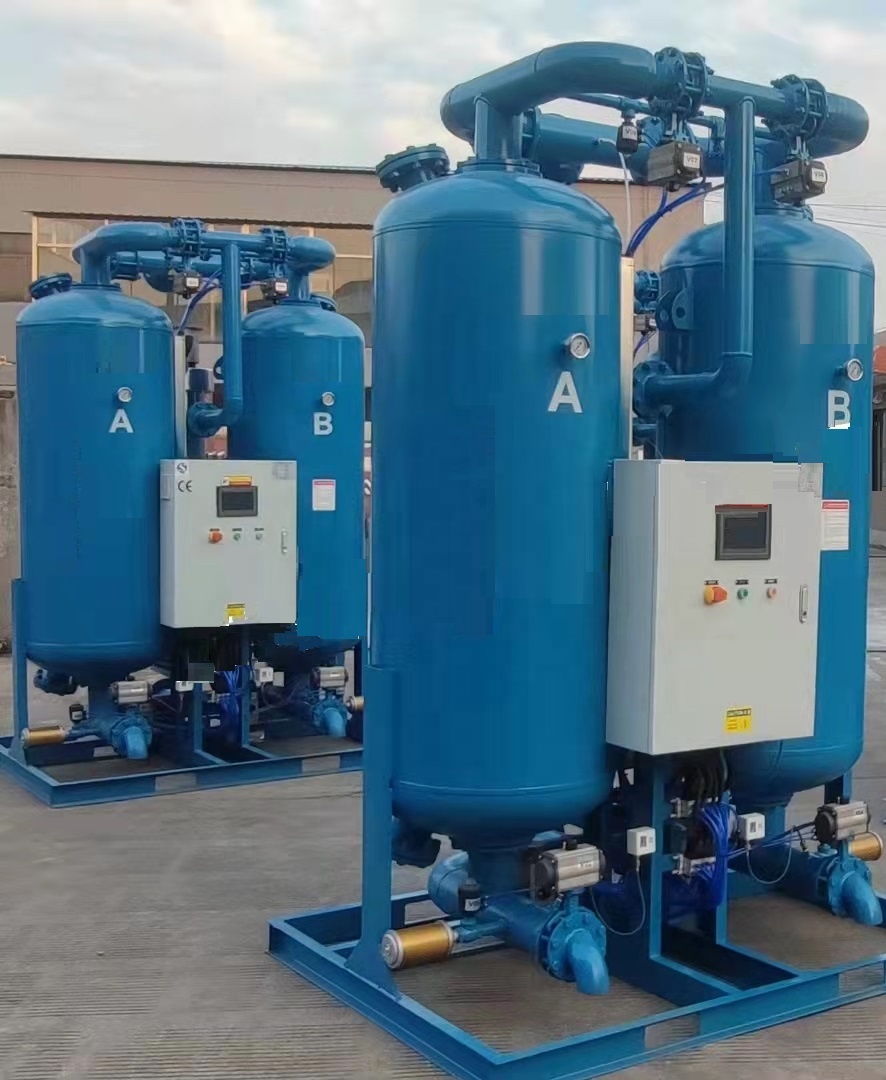

• Heatless Purge Desiccant Air Dryer is using micro holes in the desiccant itself,adsorbing the moisture in the air because of capillary,desorbing it by pressure drop and adsorbing extra-heat.Currently,the equipment is making up of two towers,controlled by the Program Controller,the two towers working alternately,one is for adsorbing,the other is for desorbing,in the way continually circulating the work.

Product Character:

• Consistent outlet pressure dew points.

• A.Rationalizing tower layout,ensure 4.8 second contact time enough to dry saturated air at the dryer inlet to the desired dew point.

• B.30% extra desiccant provide to compensate for natural bed aging,ensure top performance of desiccant bed.

• C.Large flow diffusers ensure even flow distribution through bed,eliminates channeling.

Minimum purge air use according to the less than 13.3%.

• A.Excellent designing tower,saves 95% of the heat of adsorption,stored heat maintains purge air temperature during regeneration,maximizing the purge air’s ability to carry off moisture,minimizing the amount of purge air required.

• B.Drying and purging in counter flow arrangement,energy not be wasted when wet air travels through dry desiccant.

• C.You can adjust purge air use according to the demand.

Long desiccant life

• A.Suitable tower sized ensure best condition of velocity & time when compressed air through desiccant bed,making good use of the desiccant.

• B.Rationalizing system,remove oil and heavy contaminants before flowing into the tower,protects bed from contamination.

• *Using butterfly value and reliable program controller which can be auto timing and auto switching,works stable and reliable,unaffected from electric net,pressure and electric field.

• *Scientifically designed switching time ensuring the air pressure being stable,running without waving.

• *Non basement,easy to install .

•

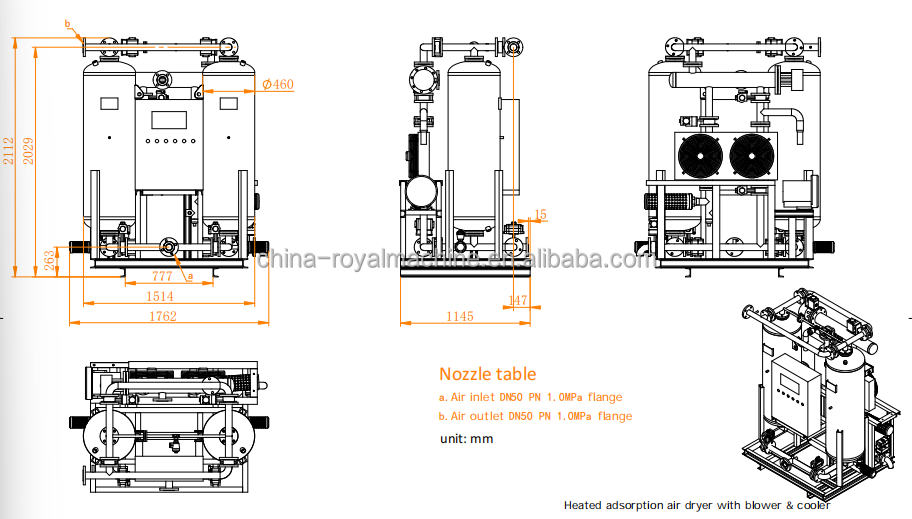

• 10.7m3/min Blower purge desiccant air dryer

  Technical data

  No.	Product name	Blower purge desiccant air dryer
  1	Model No.	RMC-10GXF
  2	Quantity	1 unit
  3	Medium	Compressed air
  4	Normal operation mode	Continuous automatic operation
  5	Air flow	10.7Nm3/min
  6	Work pressure (MPa)	0.7~1.0 MPa
  7	Dew point	-40℃
  8	Pressure loss	≤0.1Kg/cm2g
  9	Inlet temperature	≤38℃
  10	Outlet temperature	≤40℃
  11	Adsorbent	Activated alumina, molecular sieve
  12	Purge air	0%
  13	Power	19.4KW
  14	Voltage	380V/3PH/50HZ
  15	Cooler	Aluminum plate
  16	Inlet / Discharge connection	DN50(HG/T20592-2009)
  17	Control method	PLC
  18	Dimension (LxWxH)	≈1762×1145×2112
  19	Net weight	≈1750kg
  20	Installation	In door no base
  21	Noise level	85dB

Work Condition and Technical Data

• Inlet temperature: 0-45℃

• Inlet oil content:≤0.01mg/m3

• Working pressure:0.6~1.0MPa

• Designed dew point: stanard is -20℃ (-40℃ and -70℃ are available )

• Purge air:≤12%-15%

• Desiccant:activated alumina and molecular sieve

• Purge mode: heatless purge

• Working method:  continuing alternative working beween two towers

• Control mode:micro-program controller

•

Product Description

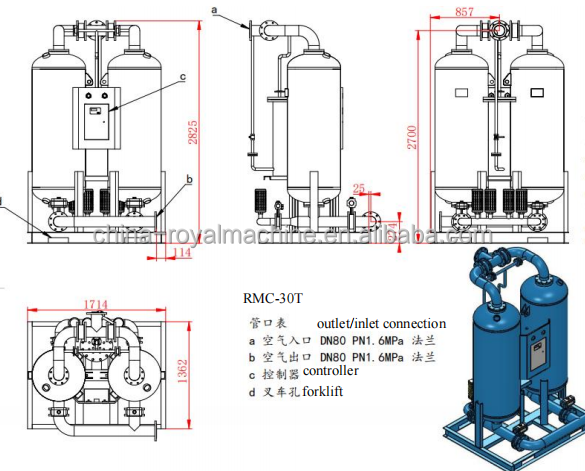

 Heatless Pure Desiccant Air Dryer --Technical data:

Externally Heated Purge Desiccant Air Dryer --Technical data:

Company Information

Shanghai Royal Machinery Co.,Ltd is a professional company of industrial air compressors, air treatment and air compressor spare parts, with engineers and sales people who have over 8 years experience, Royal Machinery has two business divisions, one is our own brand products, the other brands are Ingersoll Rand and Compair products. We have been marketing industrial compressed air equipment to global market since 2017 and the main assembling plants cover more than 50,000 square meters and 320 employees. The range of our compressors supplying start from the smallest compressors used by individuals to very large compressors used in heavy industrial applications. We started the business as a close partner to our customers, our sales team can provide you competitive price with high quality products, with our customers supporting, our team will get all the orders fulfilled on time and provide you excellent after-sales service. Our product range represents the most comprehensive portfolio of compressed air equipment offered for thousands of applications in the Oil, Textile, Food, Marine, Mining and many other industries. Our products consist of medium and high pressure reciprocating compressors, oil-injected screw compressors, oil free screw compressors, vane compressors, centrifugal compressors, portable compressors, CNG compressors and CNG related equipment, also high pressure scuba air compressors. Our mission is to bring China assembled compressors of good quality and service, with attractive price for all the customers all over the world. You are welcomed to be developed with us together for a fruitful future.

Wecome to contact us for more details, we will offer compressor details, oil free screw air compressor use manual,  oil free screw air compressor configuration list, oil free screw air compressor instruction drawings, spare parts list,  installation drawings, technical support and maintenance training.

Packaging & Shipping

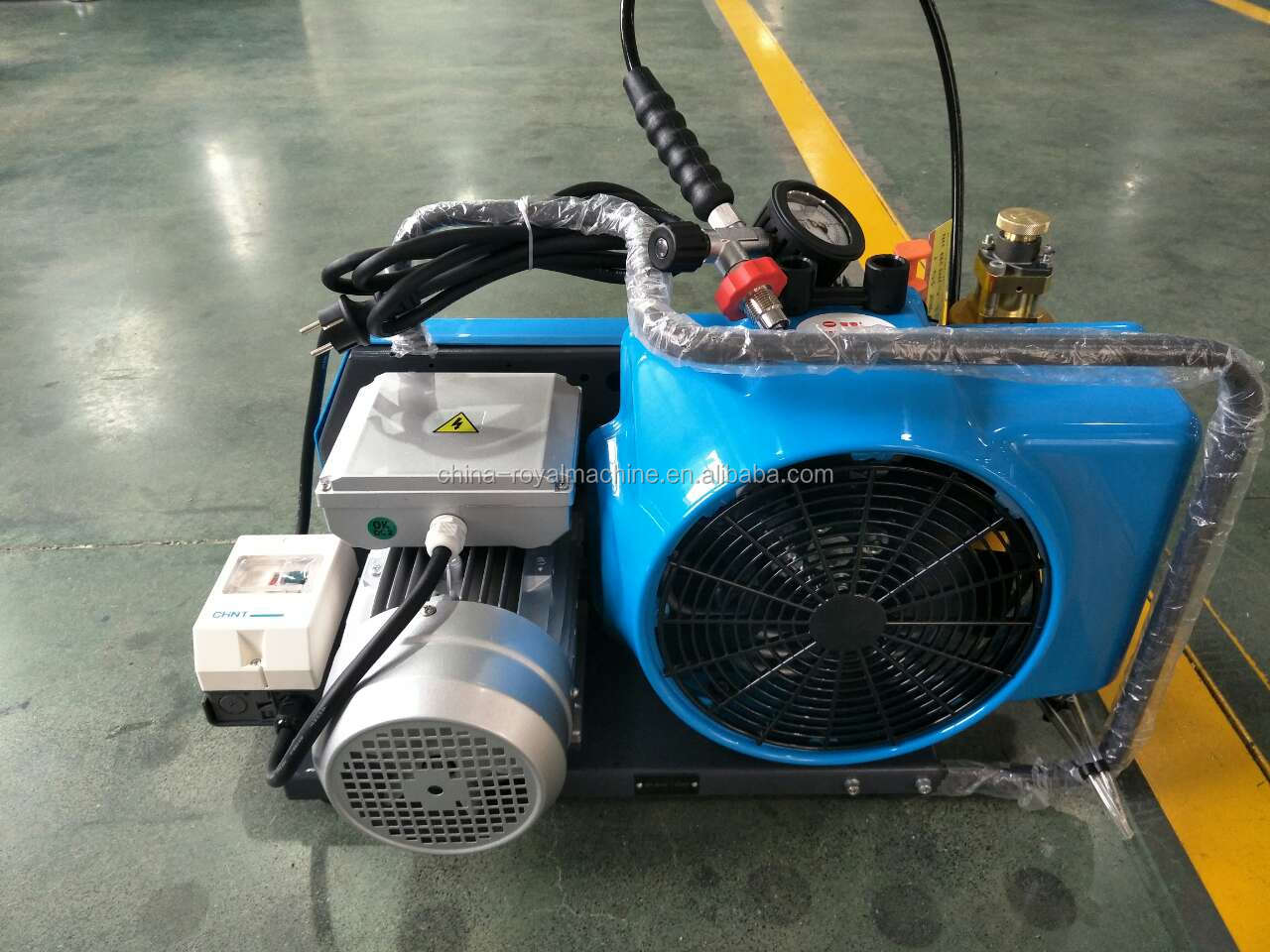

Screw air compressors package   Oil-free Scroll air compressors       200bar-300bar Air compressors
