15kw 20hp 16bar 15.8bar with 300 liters air tank with refrigerated air dryer 4 grade line filters designed for fiber laser cutting
15kw/20hp 16bar all in one screw air compressor
stock ready to shipp
1.3Mpa, 1.6Mpa
1.5m3/min/1.7m3/min
380v/50hz
tank 300liters
air dryer, line filters
auto drainers
1.3mpa 1.6mpa Screw Air Compressor For Laser Cutting machine
Special design for laser cutting machine
16bar high pressure special for laser cutting
High pressure, high efficiency cutting, air compressor, air tank,
freeze dryer, filter integration
Combination of multiple models, so that users can avoid the
trouble of installation, more convenient to use
300Liters air tank with timer drainer
Air dryer
Air capacity: 2.0m3/min
Work pressure: 16bar
Refrigerant: R134
4 grand line filters
Flow rate: 2.0m3/min
Working pressure: 16bar
1).Pre-filter,precision to 3micron
2)after-filter,precision to 1micron
3)after-filter,precision to 0.01micron
4) Active carbon line filter
5pcs timer drainer:
Good feedback comment from our customers, 16bar all in one screw air compressor for laser cutting machine:
Product Description
Tank mounted with dryer and filter 16bar for laser cutting machine use
Screw air compressor--parameters:
Model specification | RMY-10AG | RMY-15AG | RMY-20AG | RMY-25AG | RMY-30AG | RMY-40AG |
Exhaust volume Exhaust pressure M³/Min Mpa | 0.7/1.3 | 1.2/1.3 | 1.0/0.8 | 2.2/1.3 | 2.6/1.3 | 2.3/0.8 |
0.5/1.6 | 1.0/1.6 | 0.9/1.0 | 1.8/1.6 | 2.2/1.6 | 2.0/1.0 | |
Power/ Horse power | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 |
Exhaust temperature | ≤ Ambient temperature +8℃ | |||||
Intake temperature | ≤ 45℃ | |||||
Noise dB(A) | ≤ 68±2 | ≤ 70±2 | ||||
Oil Content(ppm) | ≈2 | |||||
L(mm) | 1670 | 1670 | 1670 | 2280 | 2280 | 2280 |
W(mm) | 850 | 850 | 850 | 930 | 930 | 930 |
H(mm) | 1570 | 1570 | 1570 | 1920 | 1920 | 1920 |
Weight(KG) | 516 | 556 | 596 | 756 | 806 | 856 |
Diameter of outlet | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" |

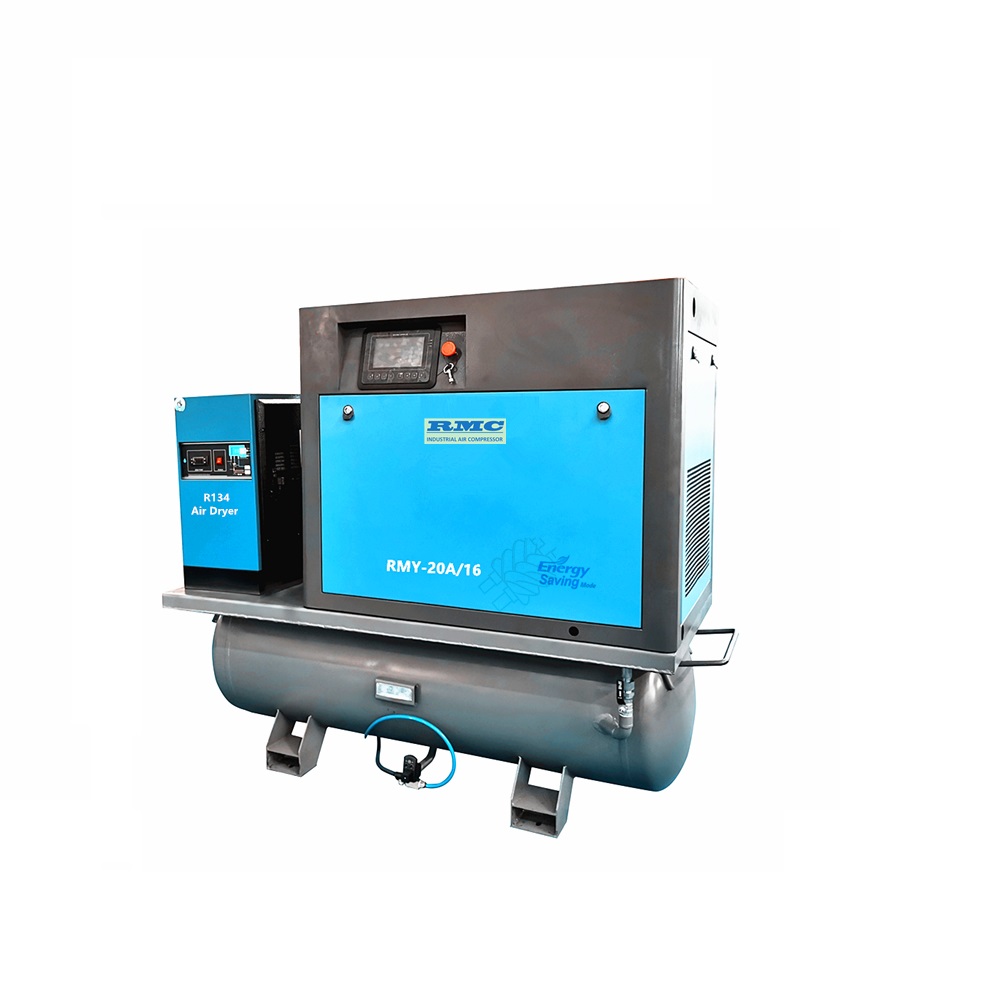

Compressor Model: RMY-20A/16
Power: 15kw/20hp IP55/F
Belt driven/ Air cooling
Voltage: 220v/380v
Frequency:50Hz/60Hz
Work compressor:16bar
Air capaicty: 1.74m3/min
Tank: 300liters
Air dryer: R134
Line filter: 4 grade
Timer drainer 5pcs
Compressed air as auxiliary gas:
For carbon steel plates, when compressed air is used as the auxiliary gas for cutting, the section of the part will generate relatively small burrs. The burrs are not sharp, and can be applied to parts that do not require high cutting surface.
Stainless steel plate, compressed air is used as auxiliary gas. After the material is processed, the cutting surface will be oxidized. When the cutting section is welded, the oxide will produce slag and pores in the weld bead, which will affect the quality of the weld and cause the strength of the welded part to decrease. Therefore, if the compressed air is used as an auxiliary gas for cutting, and the parts need to be welded after cutting, the oxide layer of the welded part needs to be polished to improve the welding quality; in addition, the oxidation of the cutting surface will become a yellow oxide layer, When re-welding, the oxide layer needs to be polished.
Aluminum plate and aluminum alloy plate, which uses compressed air as auxiliary gas, will reduce the cutting burr; if using nitrogen, the cutting burr will increase.
Laser cutting three auxiliary gases:
Laser cutting machine uses different auxiliary gas to cut different materials. The thickness of the cutting material is not used, the pressure of the auxiliary gas and the required flow rate are different.
There are three kinds of auxiliary gas for laser cutting machine, laser gas, compressed air, auxiliary gas
Laser gas: the gas used to generate laser in the laser generator
Compressed air: generally used to protect the optical path, can also be used as auxiliary gas
Auxiliary gas: gas ejected from the cutting nozzle of the cutting machine
Oxygen for carbon steel cutting is generally required to have a purity of 99.5% or higher. The main function is to support combustion and blow off the cut melt. The pressure and flow rate vary according to the requirements of the cutting machine manufacturer. It is related to the size of the cutting nozzle model and the thickness density of the material. The general pressure requirement is 0.3Mpa-0.8Mpa, the flow rate is not fixed, such as cutting 22mm carbon steel, and some manufacturers require 10m3/h (including the use of oxygen (Protect double-sided cutting nozzle).
Nitrogen is used for cutting stainless steel to prevent oxidation reaction and blow off the melt. The purity of nitrogen is particularly high (stainless steel with a thickness of more than 8mm, the purity must reach 99.999%), and the pressure is generally above 1.0Mpa. If you want to cut For stainless steel above 12mm or 25mm thickness, the pressure requirement will be 20Mpa or higher. The flow rate is determined according to the type of cutting nozzle. Generally 12mm thick stainless steel, the flow rate needs 150m3/h, and the thickness is 3mm stainless steel plate, the flow rate is 50m3/ h.
PLC controller functions of our screw air compresosr:
1. Touch screen display shown
loading and unloading status
working hours
current pressure, temperature
full-load operation hours
filters and oil replacement time
running status
motor running status
main motor currency
electric current
cooling fan current
cooling fan operation status
2. Automatically alarm functions:
high temperature alarm
oil change-over time arrive alarm
air filter change-over time arrive alarm
pressure, temperature sensor fault alarm
oil filter change-over time arrive alarm
oil separator change-over time arrive alarm
communication fault alarm
belt extended use alarm(belt driven compressor)
Fixed Speed Belt driven screw air compressor for laser cutting machine--parameters:
Model No. | RM-10AG | RM-15AG | RM-20AG | RM-25AG | RM-30AG | RM-40AG |
Air capacity (m3/min/Mpa) | 0.7/1.3 | 1.2/1.3 | 1.7/1.3 | 2.2/1.3 | 2.6/1.3 | 3.6/1.3 |
0.5/1.6 | 1.0/1.6 | 1.5/1.6 | 1.8/1.6 | 2.2/1.6 | 3.2/1.6 | |
Power(KW/HP) | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 |
Noise dB(A) | 68±2 | 70±2 | ||||
Length (mm) | 900 | 900 | 900 | 1290 | 1290 | 1290 |
Width (mm) | 850 | 850 | 850 | 900 | 900 | 900 |
Height(mm) | 940 | 940 | 940 | 1190 | 1190 | 1190 |
Weight(Kg) | 230 | 262 | 292 | 450 | 500 | 600 |
Outlet size | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" |
Special design for laser cutting machine
16bar high pressure customized for laser cutting industry
High pressure,high efficiency cutting
Permanent magnet Screw Air Compressors--16bar for laser cutting machine use
Stationary type--parameters
Model No. | RM-10AM | RM-15AM | RM-20AM | RM-25AM | RM-30AM | RM-40AM |
Air capacity (m3/min/Mpa) | 0.7/1.3 | 1.2/1.3 | 1.7/1.3 | 2.2/1.3 | 2.6/1.3 | 3.6/1.3 |
0.5/1.6 | 1.0/1.6 | 1.5/1.6 | 1.8/1.6 | 2.2/1.6 | 3.2/1.6 | |
Power(KW/HP) | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 |
Noise dB(A) | 68±2 | 70±2 | ||||
Length (mm) | 900 | 900 | 900 | 1290 | 1290 | 1290 |
Width (mm) | 850 | 850 | 850 | 900 | 900 | 900 |
Height (mm) | 940 | 940 | 940 | 1190 | 1190 | 1190 |
Weight (Kg) | 245 | 280 | 312 | 480 | 530 | 630 |
Outlet size | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" |
Our Services
Long interval maintenance periods:
Nearly ideal isothermal compression, direct driven method, smart configuration and precision component design and machining, long bearing service life, all of the above essentially extends interval between regular periodical maintenance.
Company Information
Shanghai Royal Machinery Co.,Ltd is a high-tech enterprise which specialized in sales and service of compressed air system equipment, and after-treatment equipment, booster compressor, diesel generator and drying equipment, etc.
We have an experienced team. It not only provide high-quality and high-efficiency compressors for users but also provide the best solution for air system equipment during before-sale, selling and after-sale.
Welcome to contact us for inquires and quotation.
Packaging & Shipping
All of our screw air compressors are packed by export standard plywood case:
Because of screw air compressor package volume and weight, most of our screw air compressors are shipped by sea.
Wecome to contact us for more details, we will offer compressor details, oil free screw air compressor use manual, oil free screw air compressor configuration list, oil free screw air compressor instruction drawings, spare parts list, installation drawings, technical support and maintenance training.
Our CE certificate:
Air compressors can be grouped into three classifications: consumer grade, professional grade and industrial grade.
Consumer grade air compressors can be described as a pancake or single-stage model. They’re used for household tasks like inflating tires and inflatable products and possibly some low-load air tools like staplers and brad guns.
Professional grade air compressors provide more power and higher pressurized air. They could be two-stage reciprocating models or rotary screw models and can provide more power to run several air tools at once with intermittent use.
Industrial grade air compressors will be the workhorse of a manufacturing plant or the reliable power source on an oil rig. They are designed to provide a steady flow of compressed air for long periods of time and can take fluctuating surges in use typical in major manufacturing plants. These compressors are built with high-quality components that allow for customization to the specific environment to improve performance, energy efficiency and reliability.
Here we offer i screw air compressors:
Power range: 5kw-400kw
Air flow: 1m3/min-75m3/min
