11kw 15hp fixed speed screw air compressor

air cooling
fixed speed
IP54

3.0m3/min 8bar screw air compressor for sand blasting machine

  • Air flow capacity: 3.0m3/min/120cfm

  • Pressure: 8bar/0.8Mpa /116psi

  • Motor power: 22kw/30hp

  • Motor: IP55/IE3

  • Controller: PLC with touch screen display

  • Voltage: 380v/50hz  220v/60hz

  • 3-6.png

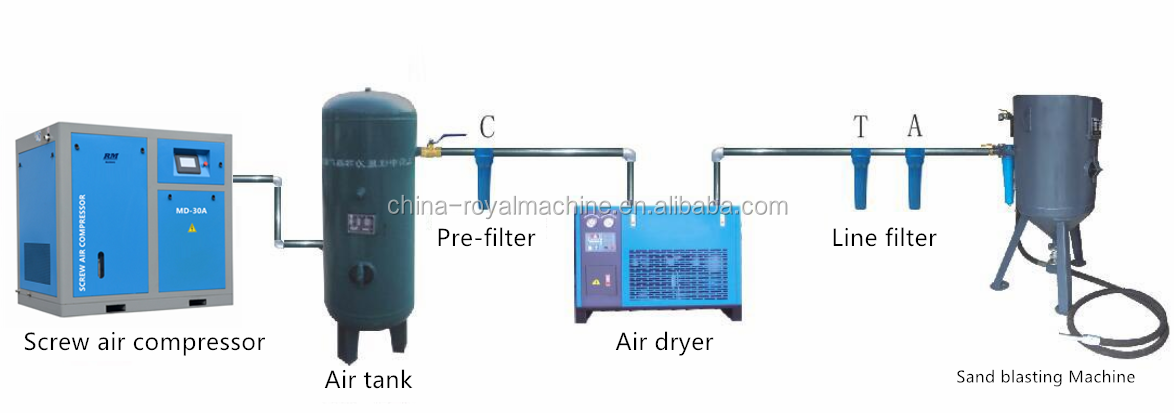

  • screw ari comrpessor      air tank with certificate   air dryer/desiccant air dryer     line filters with different precision

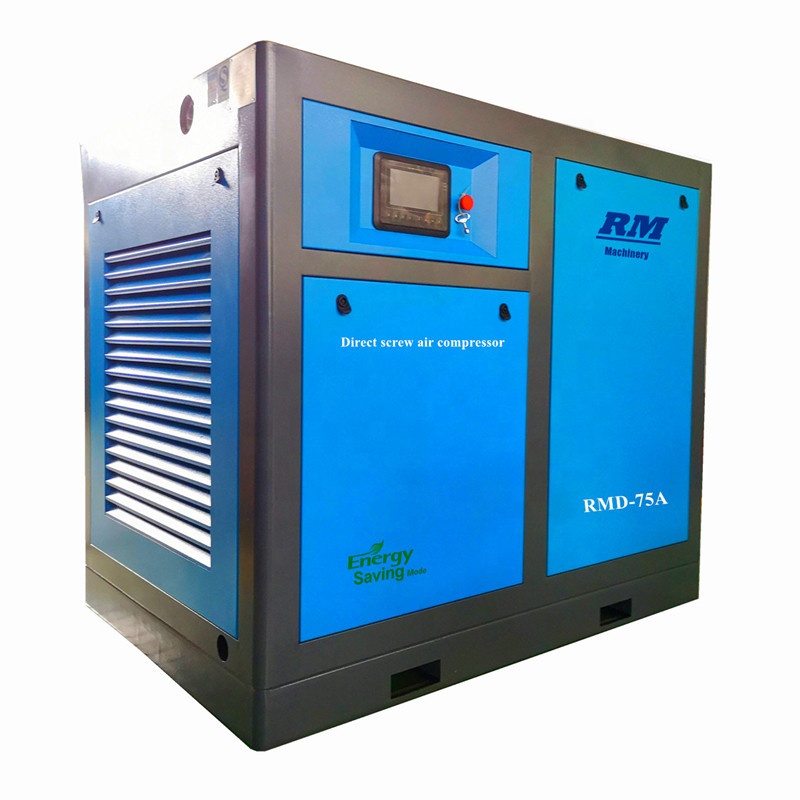

75kw/100hp screw air compressor

  • Pressure: 7bar 8bar 10bar/116pis, 145psi

  • Air flow: 13m3/min/452cfm 435cfm

  • Power: 75kw/100hp

  • Motor: IP55/IE3

  • Controller: PLC with touch screen display

  • Fixed speed/ Variable speed /PM motor inverter type

  • IMG_20190525_114236


Product Description

 Fixed Speed Direct Driven Series Screw Air Compressors

ModelAir flow Capacity(m3/min)/cfmPowerNoiseOutletDimensionWeight
0.7Mpa0.8Mpa1.0Mpa1.25MpaKW/HPDB(A)ConnectW×D×H mmKg
No.m3/mincfmm3/mincfmm3/mincfmm3/mincfm




RMC-30A3.6127.13.41203.21132.898.922/3068G1''1300×920×1100700
RMC-50A6.5229.56.22195.6197.84.917337/5069G1'' 1/2''1450×1000×1240900
RMC-75A10.1356.79.5335.58.5300.27.5264.955/7570G2''1720×1200×13401700
RMC-100A13.6480.312.845212.3434.410.2360.275/10072G2''2010×1260×14601900
RMC-125A16.1568.515.5547.414.0494.412.5441.490/12572DN502010×1260×14602500
RMC-150A21.2748.719.6692.217.8628.615.5547.4110/15073DN652300×1600×17902800
RMC-175A24.185123.2819.320.572417.8628.6132/17574DN652300×1600×17903000
RMC-220A28.8101727.8981.725.0882.922.4791160/22075DN802650×1700×18503500
RMC-250A/W32.51147.831.21101.828.0988.825.8911185/25077DN802650×1700×18503800
RMC-270A/W34.51218.434.01200.730.5107728988.8200/27076DN802650×1700×18504200
RMC-300A/W36.81299.634.71225.431.51112.429.51041.8220/30080DN1003000×1900×19304800
RMC-350A/W43.01518.541.51465.638.0134234.91232.5250/35078DN1003000×1900×19305200
RMC-375A/W51.351813.450.591786.646.061626.641.511466280/37582DN1254200×2200×22407600
RMC-400A/W56.792005.555.951975.950.081768.645.621611315/40082DN1254200×2200×22407600
RMC-450A/W66.082333.665.432310.655.121946.549.581750.9355/45083DN1254200×2200×22408200
RMC-500A/W75.052473.874.312624.264.462276.458.072050.7400/50083DN1254200×2200×22408200
  • A represents air-cooling type, W represents water-cooling type;

  • Working environment temperature: - 5 °C ~ 45 °C;

  • The exhaust temperature is less than environment temperature about + 10 °C ~ 15 °C.

  • Driving mode: Direct transmission;

  • Startup mode: direct start under 11KW, and Y-Δ start above 11KW;

  • Work power: 380V / 50HZ, 460V / 230V / 6KV and 10KV voltages can be made for customers;

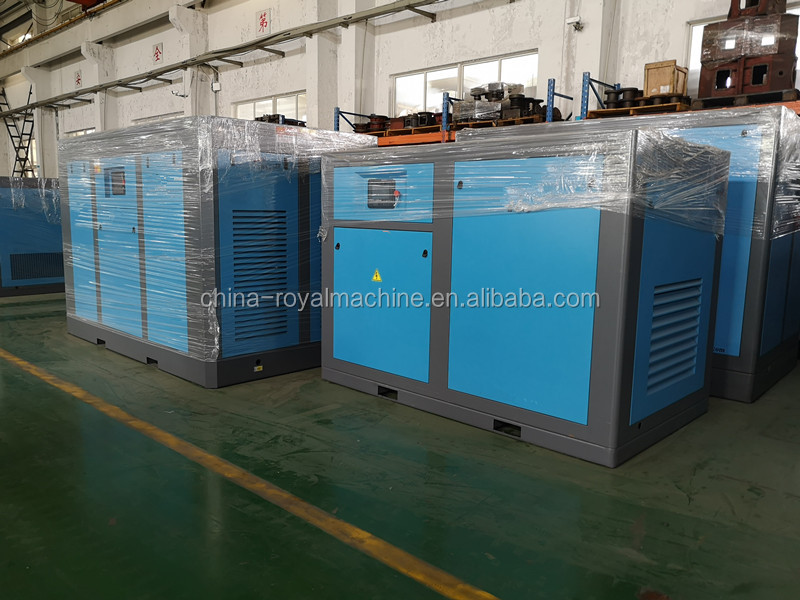

 75kw direct driven fixed speed screw air compressor details photos:

IMG_20190525_1124011

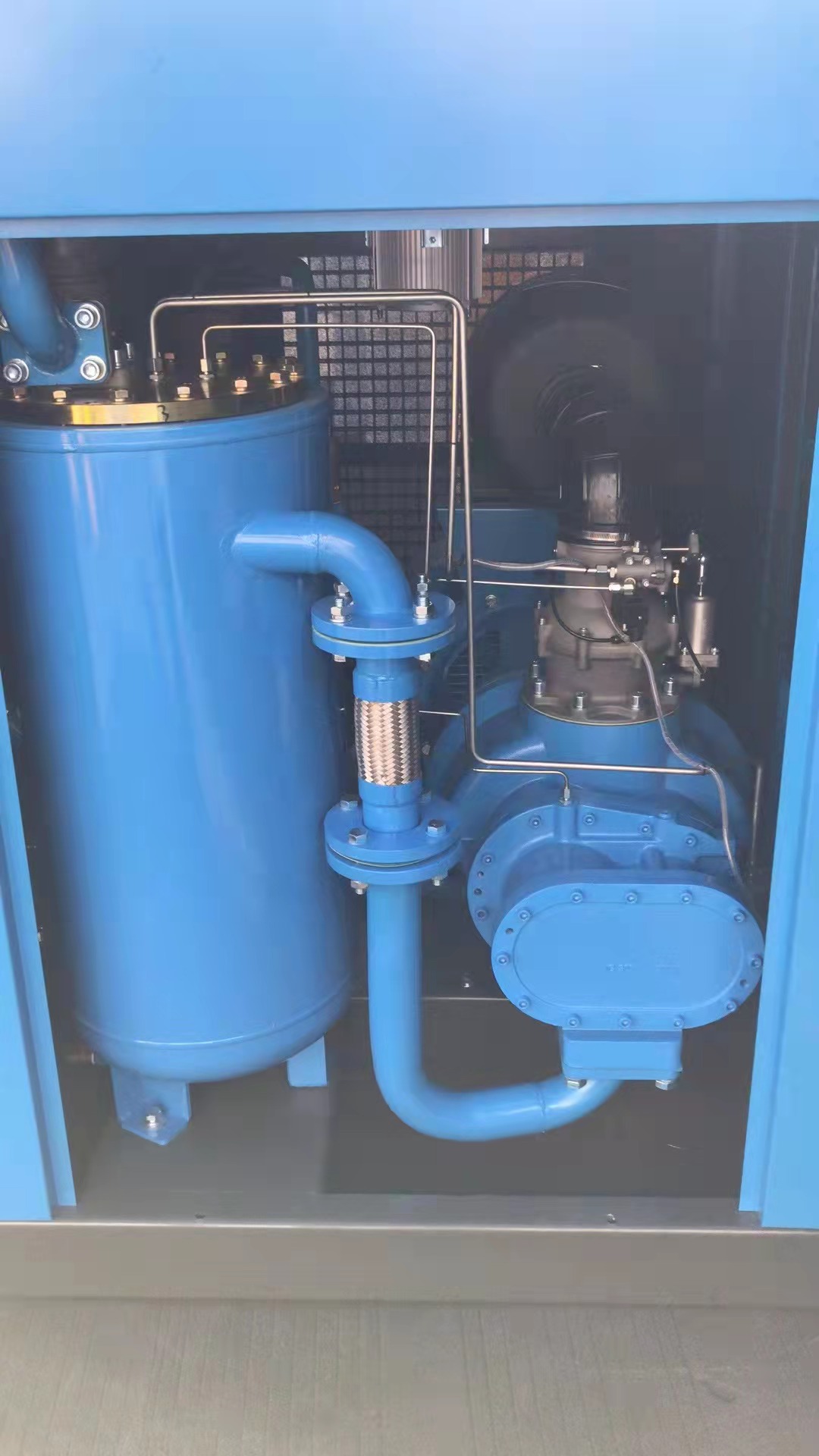

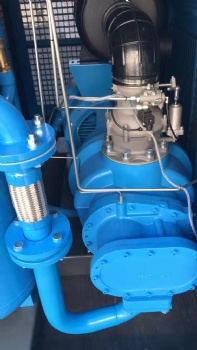

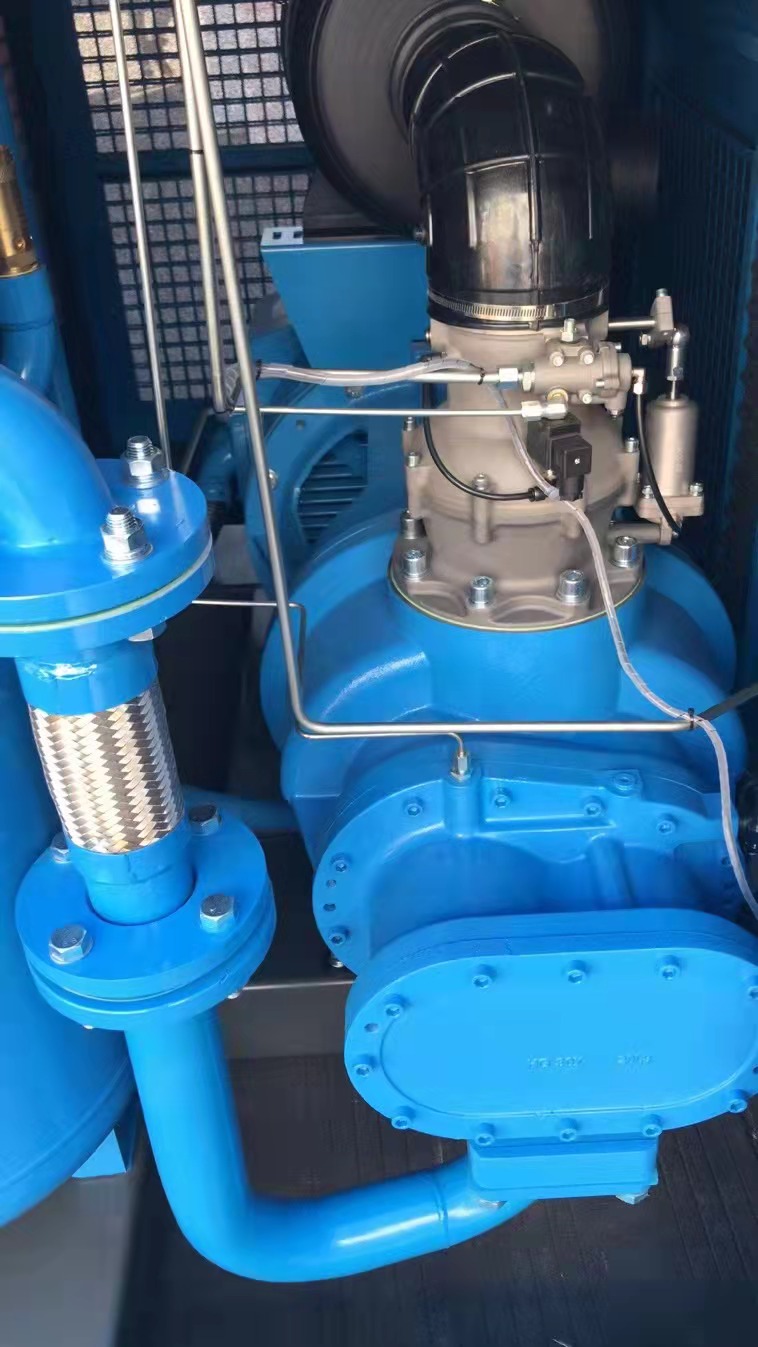

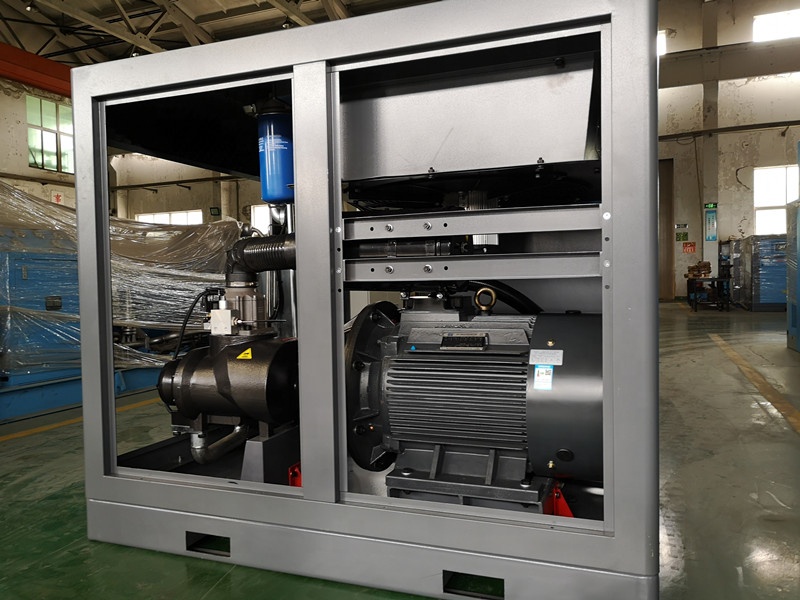

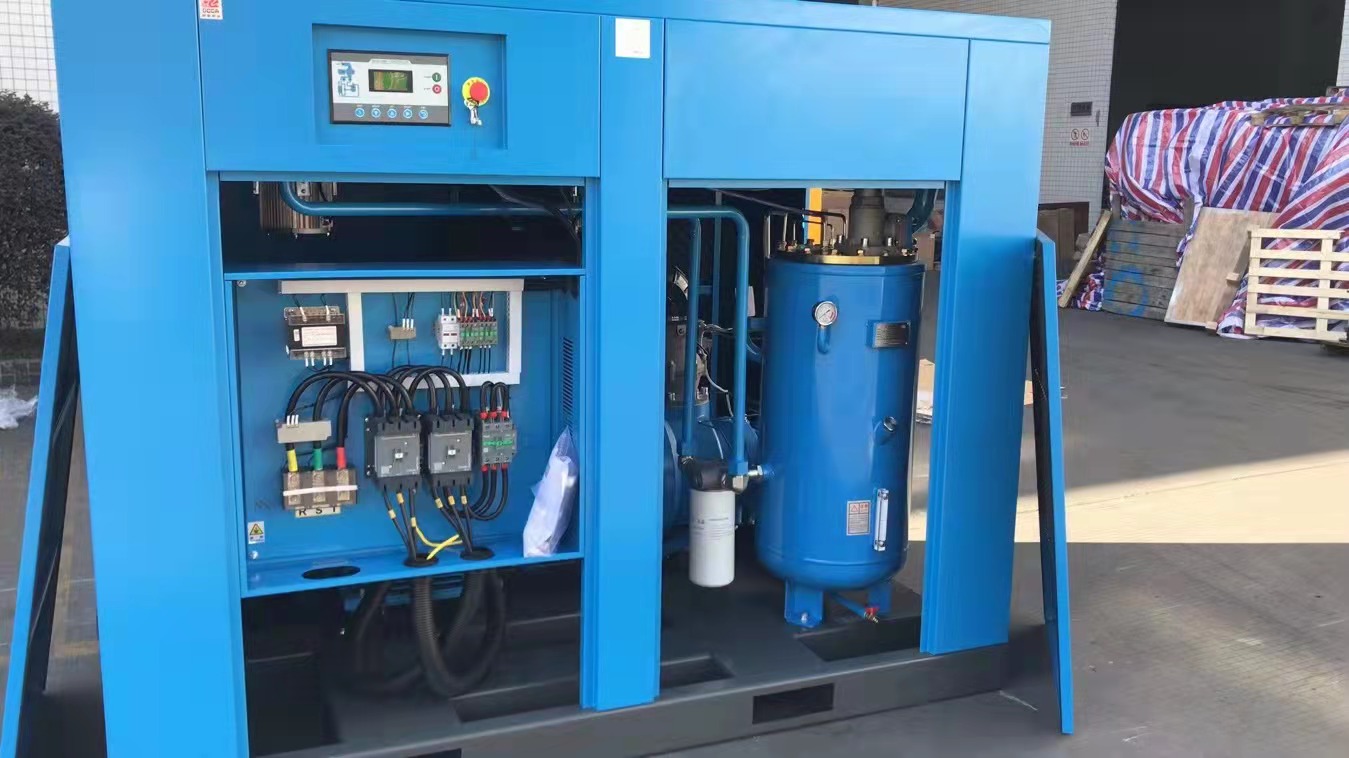

Inside photos: high quality configuration, coupling driven, air cooling

IMG_20190525_113211

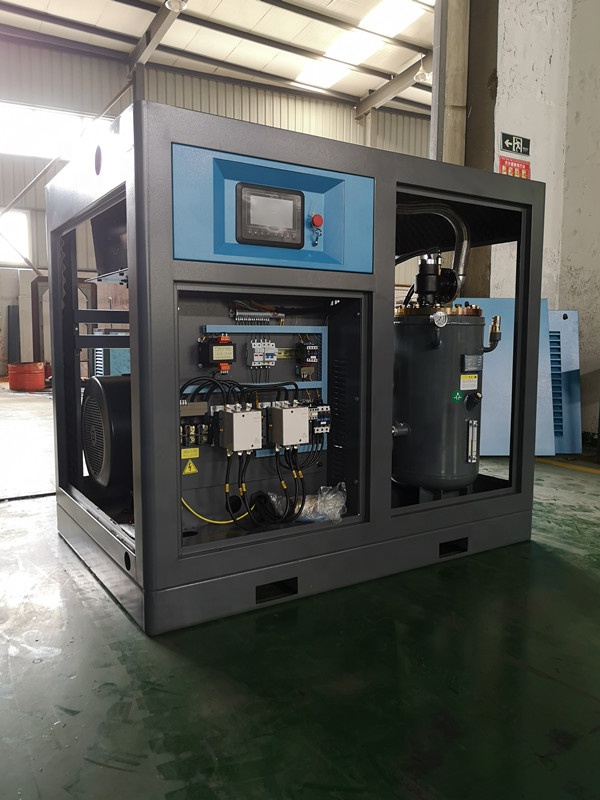

fixed speed screw air compressor, MAM6090 touch screen controller, easy to handle and maintenance

IMG_20190525_114236

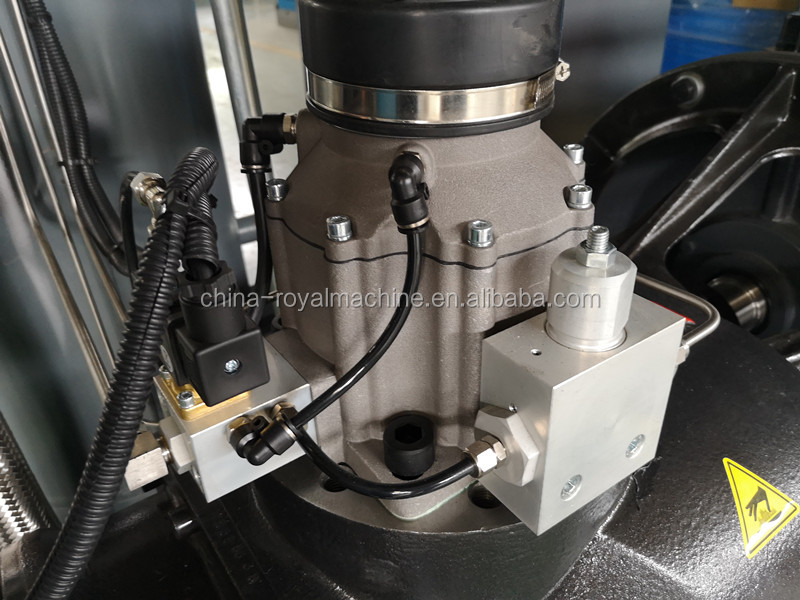

High quality inlet valve, with solenoid vave for one setIMG_20190525_113607

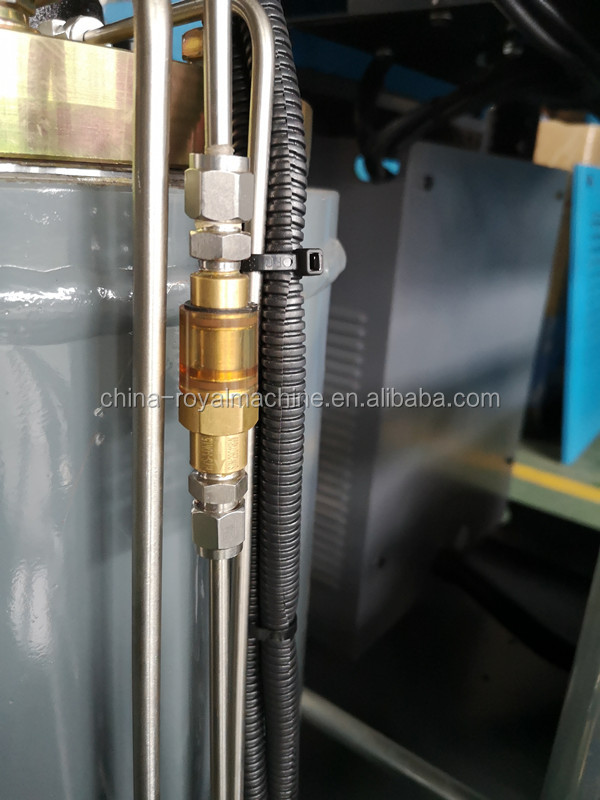

IMG_20190525_113712transparent cover non-return valve for all of our screw air compressors, easy to check and do maintenance, brass pipes.

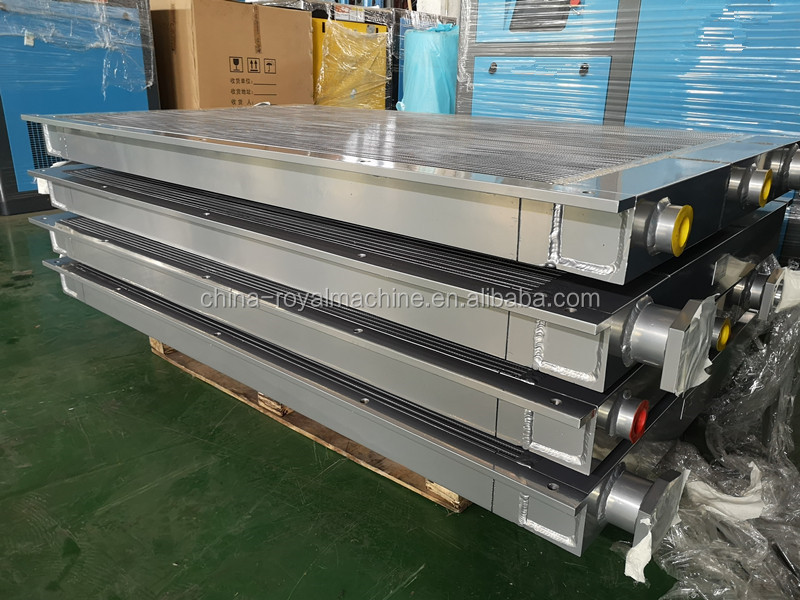

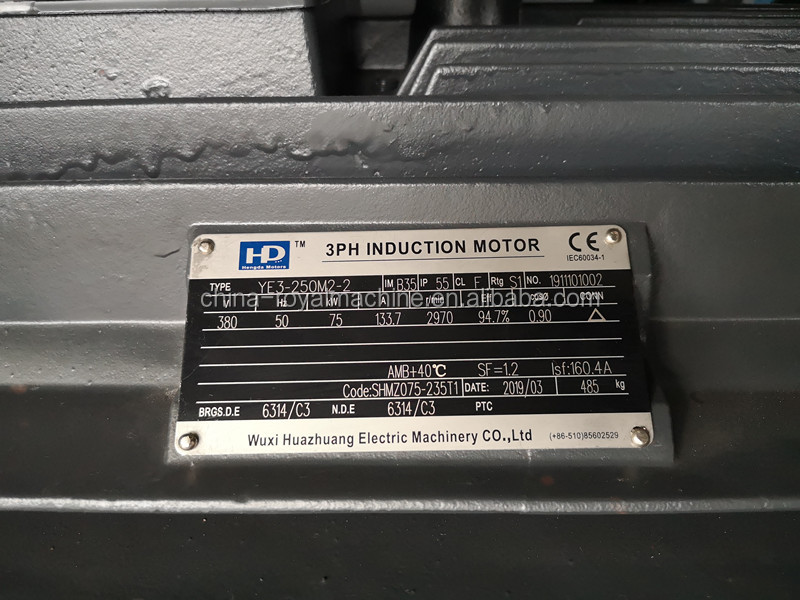

well made top quality coolers, high efficient coolingIMG_20190525_115456IMG_20190525_113530IP54 and IP55 electric motor are available

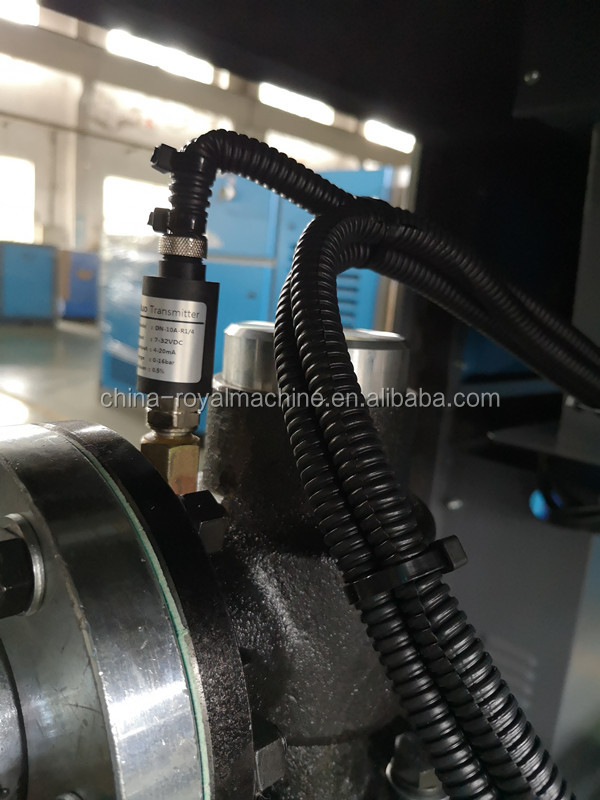

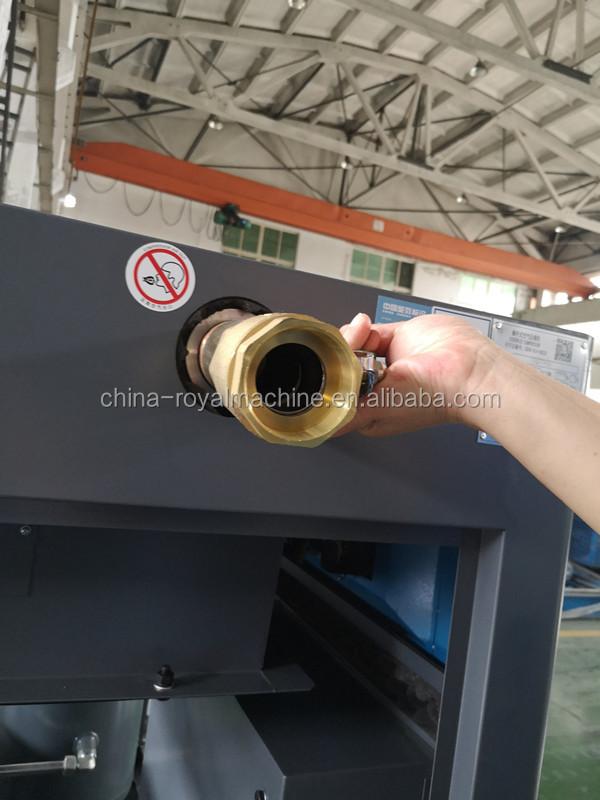

Temperature sensor and min.pressure valveIMG_20190525_113648IMG_20190525_114452standard accessory, brass valve, do big help for outlet pipes connect.





IMG_20190525_114303

Our Services

 Long interval maintenance periods:

Nearly ideal isothermal compression, direct driven method, smart configuration and precision component design and machining, long bearing service life, all of the above essentially extends interval between regular periodical maintenance.

Company Information

Shanghai Royal Machinery Co.,Ltd is a high-tech enterprise which specialized in sales and service of compressed air system equipment, and after-treatment equipment, booster compressor, diesel generator and drying equipment, etc.



We have an experienced team. It not only provide high-quality and high-efficiency compressors for users but also provide the best solution for air system equipment during before-sale, selling and after-sale.



Welcome to contact us for inquires and quotation.

Packaging & Shipping

  All of our screw air compressors are packed by export standard plywood case:



20150123_162426



Because of screw air compressor package volume and weight,  most of our screw air compressors are shipped by sea.

download



Wecome to contact us for more details, we will offer compressor details, oil free screw air compressor use manual,  oil free screw air compressor configuration list, oil free screw air compressor instruction drawings, spare parts list,  installation drawings, technical support and maintenance training.

Our CE certificate:

CE_00



Air compressors can be grouped into three classifications: consumer grade, professional grade and industrial grade.

  • Consumer grade air compressors can be described as a pancake or single-stage model. They’re used for household tasks like inflating tires and inflatable products and possibly some low-load air tools like staplers and brad guns.

  • Professional grade air compressors provide more power and higher pressurized air. They could be two-stage reciprocating models or rotary screw models and can provide more power to run several air tools at once with intermittent use.

  • Industrial grade air compressors will be the workhorse of a manufacturing plant or the reliable power source on an oil rig. They are designed to provide a steady flow of compressed air for long periods of time and can take fluctuating surges in use typical in major manufacturing plants. These compressors are built with high-quality components that allow for customization to the specific environment to improve performance, energy efficiency and reliability.

Here we offer i screw air compressors:

Power range: 5kw-400kw

Air flow: 1m3/min-75m3/min
