30bar 40bar High pressure air compressor for 2L bottle PET blowing machine

outlet pressure 30bar-40bar
air flow capaicty 2m3/min-10m3/min
inlet pressure 8bar-10bar
air source: oil injection screw air compressors

Description
Inquiry

3.0Mpa 4.0Mpa high pressure Air compressor for 4 cavity 1 liter pet plastic bottle blow moulding machine

Model No.: MYL-1.0/30, MYL-1.2/30
Air flow: 1000L/min, 1200L/min
Pressure: 30bar
Speed: 630rpm
Power: 11kw, 15kw

l Model No.: YL-2.0/30

l Air delivery: 2000 L/min

l Pressure: 30bar

l Speed: 735 rpm

l Power: 22kw/30hp

l Weight:673kg

l Package size: 175*94*110mm

l Model No.: YL-1.6/30

l Air delivery: 1600 L/min

l Pressure: 30bar

l Speed: 735 rpm

l Power: 18.5kw/25hp

l Weight:600kg

l Package size: 175*94*110mm

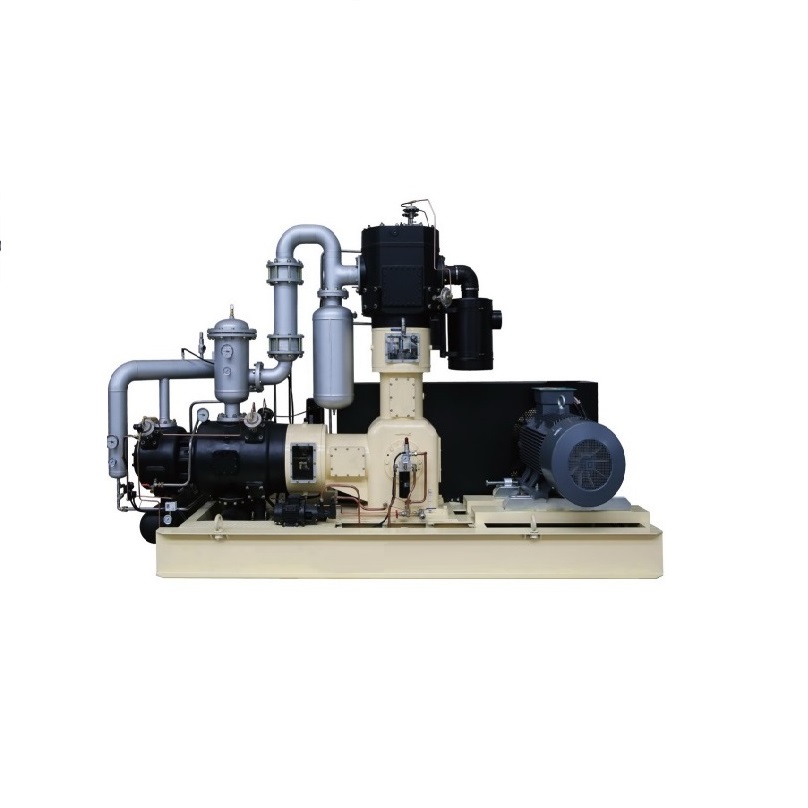

35bar 3.5Mpa booster air compressor for PET blowing

inlet pressure 7bar
outlet pressure 35bar
inlet air flow: 0.85m3/min
outlet air flow: 0.72m3/min
motor power: 5.5kw
speed: 670rpm

Product Description

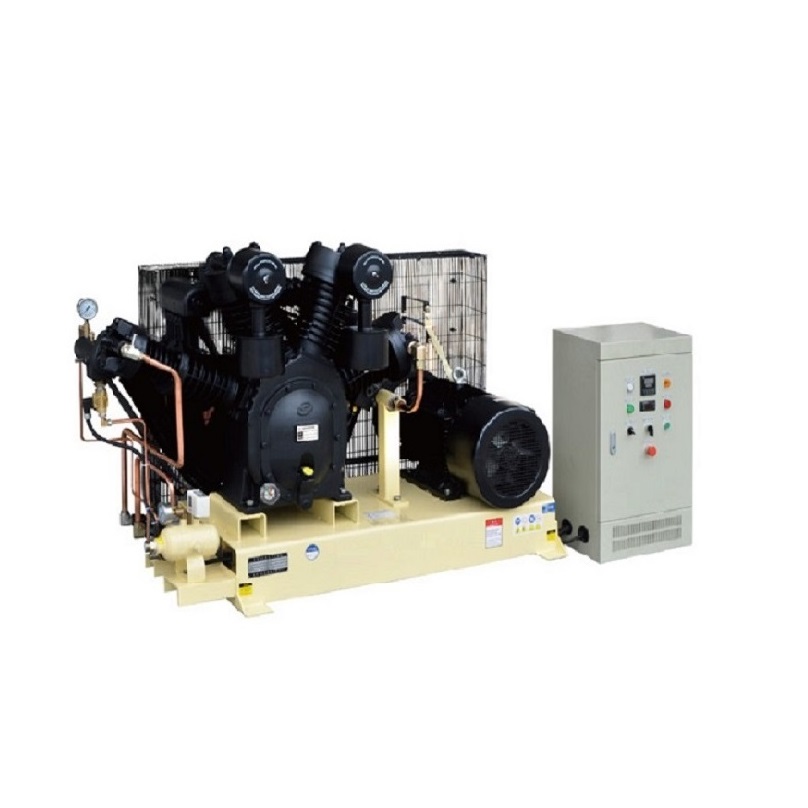

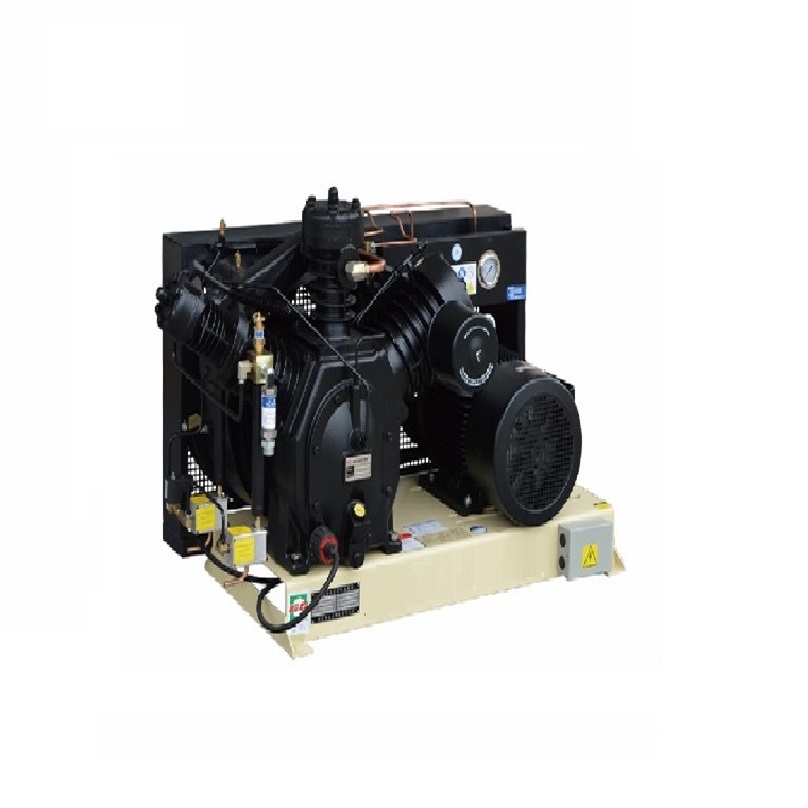

High pressure piston air compressor

Model No.	Airend	Air flow Nm3/min	Outlet pressure Mpa	Motor power KW
35VH-0.7/30A-SB	H0621A	0.7	3.0	7.5
35VH-0.7/30A(tank)	H0621A	0.7	3.0	7.5
36WH-1.0/30C-SB	H1231C	1.0	3.0	11
36WH-1.2/30C-SB		1.2	3.0	15
36WH-1.0/30C(tank)		1.0	3.0	11
36WH-1.2/30C(tank)		1.2	3.0	15
2-36WH-2.0/30C		2.0	3.0	2×11
2-36WH-2.4/30C		2.4	3.0	2×15
33WH-1.6/30A(tank)	H1531A	1.6	3.0	18.5
33WH-1.6/30B(tank)	H1531B	1.6	3.0	18.5
2-33WH-3.2/30B	H1531B	3.2	3.0	2×18.5
24WH-2.0/30A	H1631A	2.0	3.0	22
2-24WH-4.0/30A		4.0	3.0	2×22
3-24WH-6.0/30A		6.0	3.0	3×22

Booster air compressor detail parameter list:

Model No.	Air end No.	Inlet Pressure Mpa	Outlet Pressure Mpa	Inlet Air Flow m3/min	Outlet Air Flow m3/min	Motor Power KW	Speed r.p.m
BC108	BC1221	0.7	3.5	0.85	0.72	5.5	670
BC180	BC1621	0.7	3.0	1.4	1.2	5.5	670
BC180		1.0	3.0	2.0	1.65	7.5	670
BC260		0.7	3.0	2.0	1.7	7.5	950
BC260		1.0	3.5	2.8	2.4	9.0	950
BC260		1.3	4.0	3.5	3.1	9.0	950
BC330	BC2021	0.7	3.0	2.6	2.1	9.0	800
BC330		1.0	3.5	3.6	3.1	11	800
BC330		1.3	4.0	4.5	4.0	15	800
BC430	BC1631	0.7	3.0	3.4	2.8	11	1050
BC430		1.0	3.5	4.6	4.0	15	1050
BC430		1.3	4.0	5.9	5.2	15	1050
BC560	BC2031	0.7	3.0	4.4	3.6	18.5	900
BC560		1.0	3.5	6.0	5.2	18.5	900
BC560		1.3	4.0	7.6	6.7	22	900
BC650		0.7	3.0	5.1	4.2	18.5	1050
BC650	BC2031	1.0	3.5	7.0	6.0	22	1050
BC650	BC2031	1.3	4.0	8.9	7.8	22	1050
BC870	BC2631	0.7	3.0	6.9	5.6	22	820
BC870		1.0	3.0	9.4	8.1	25	820
BC1000		0.7	3.0	7.9	6.5	25	950
BC1000		1.0	3.0	10.9	9.4	30	950
BC-9.0/40-10	BC2241	1.0	4.0	10.5	9.0	30	620
BC-10/35-10	BC3031A	1.0	3.5	12.5	10.0	37	720

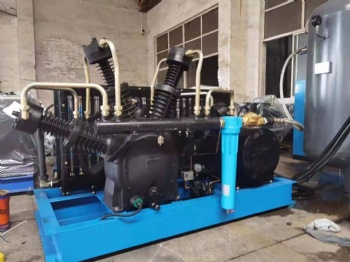

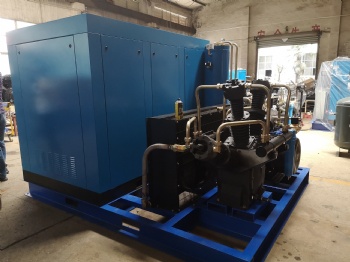

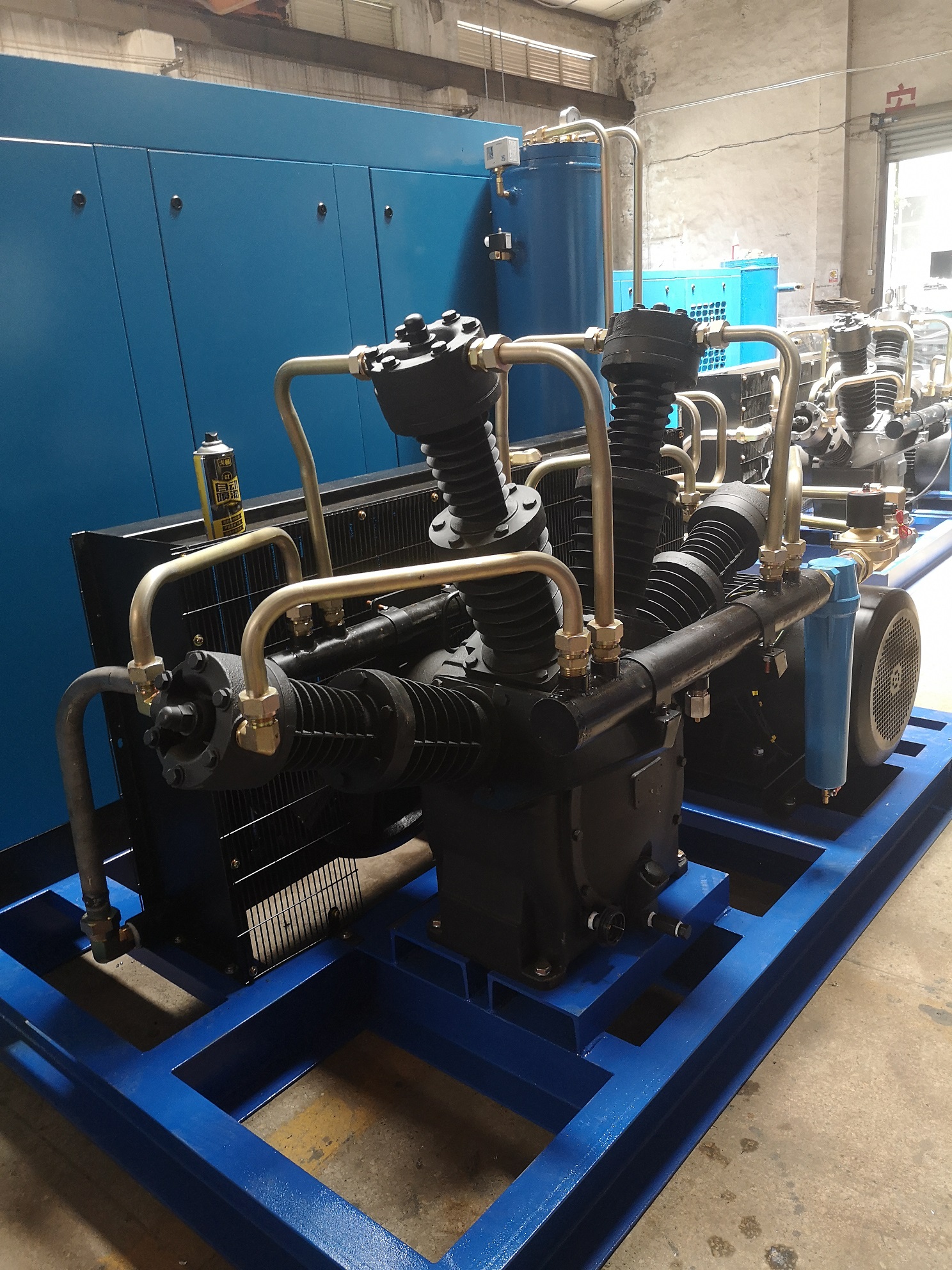

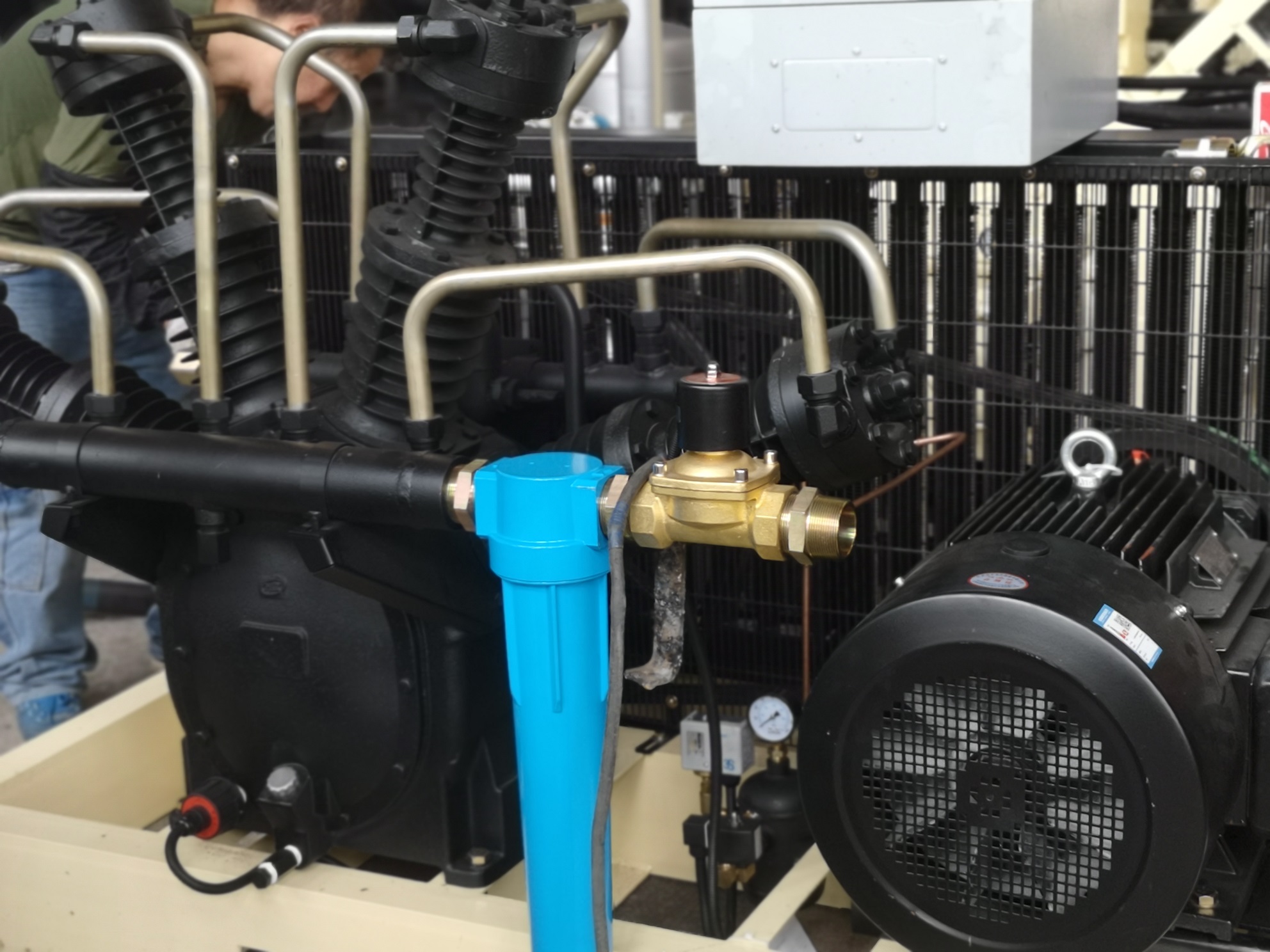

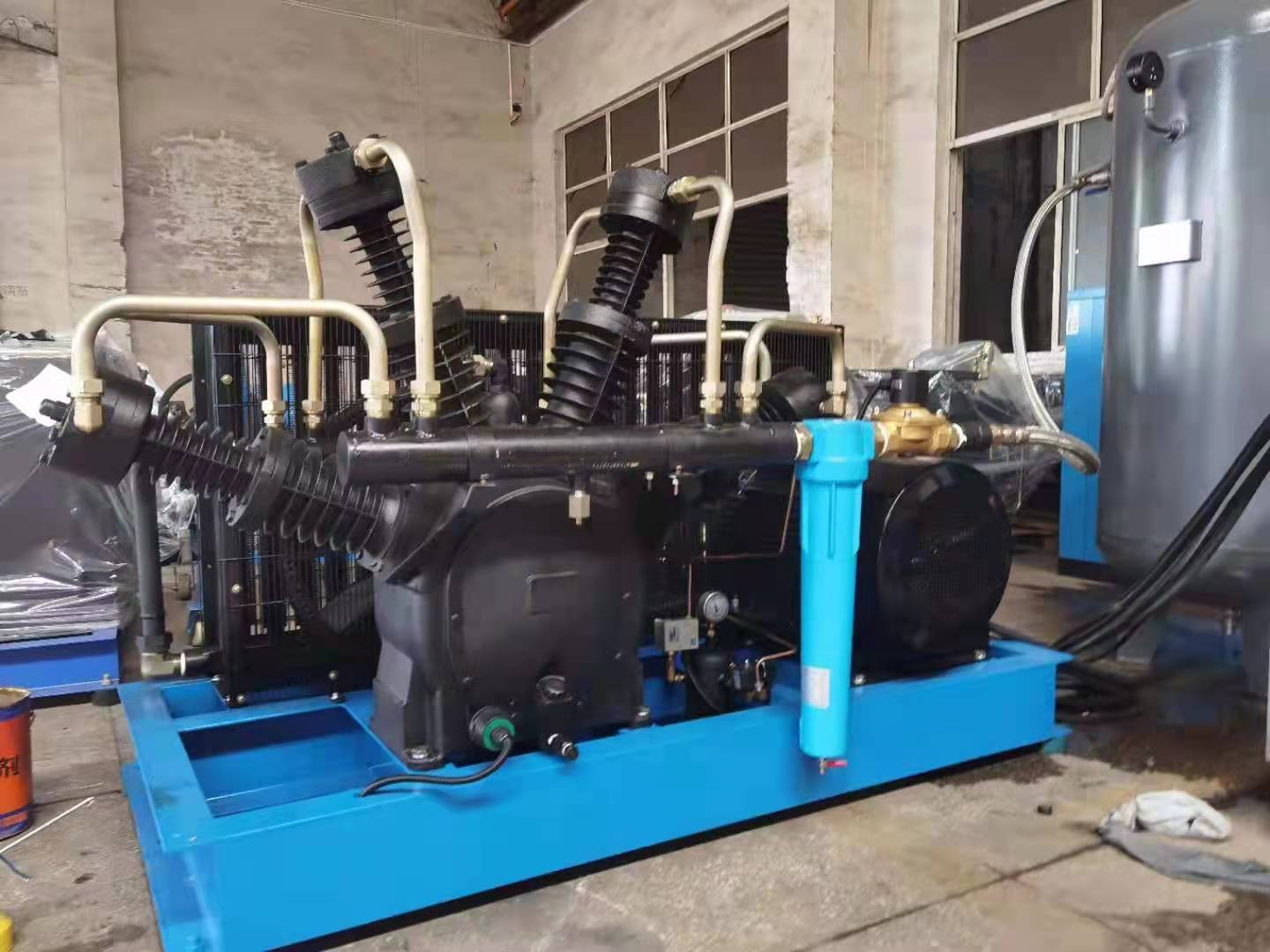

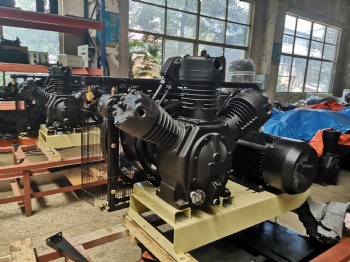

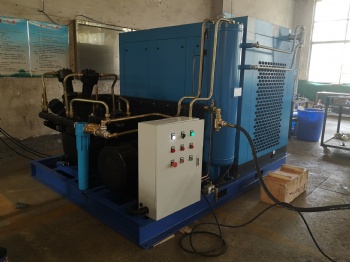

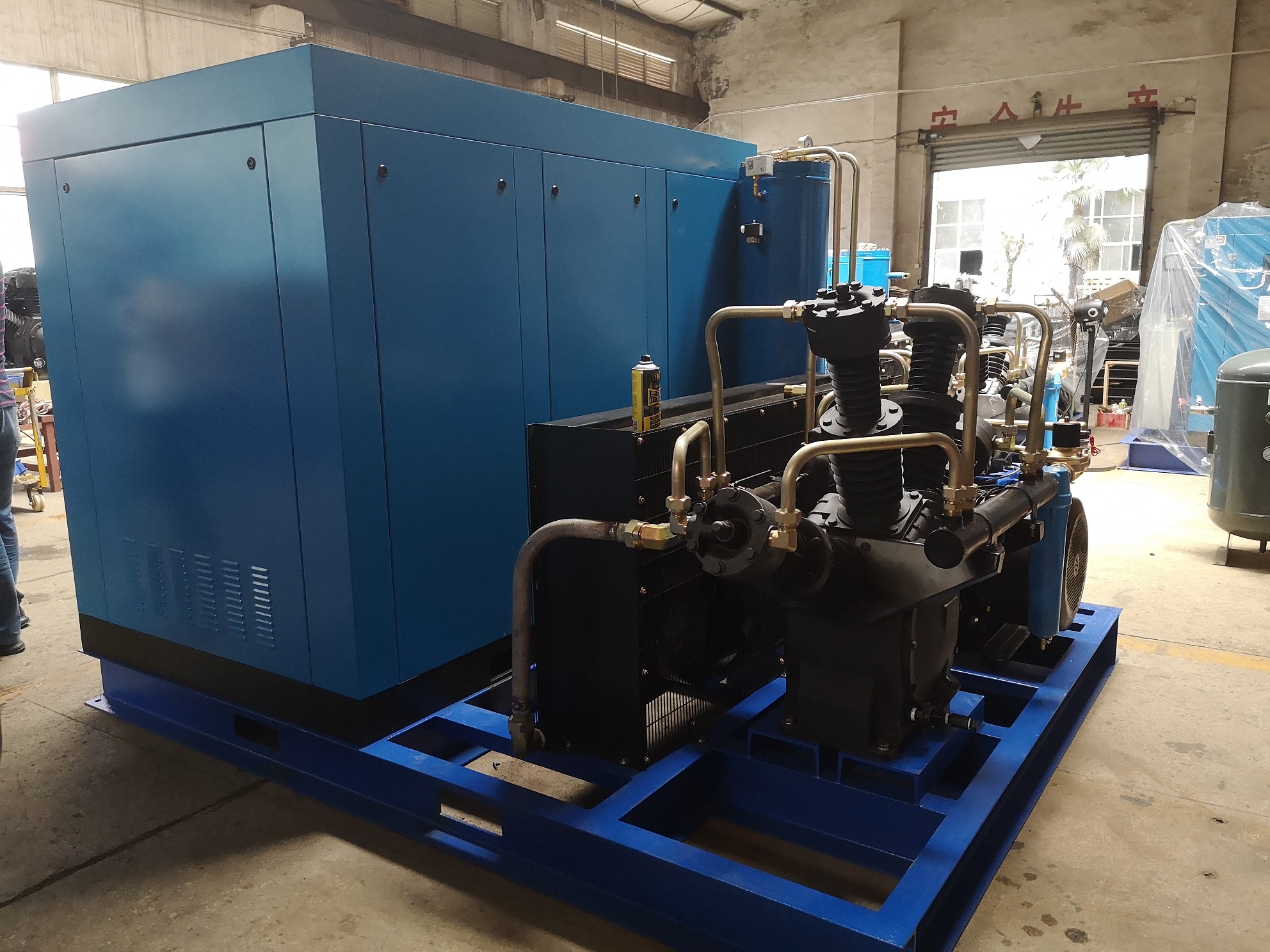

Boosyrt air compressor photos:

Welcome to contact us for more details, technical specifications.

Thank you!

Packaging & Shipping

All of our screw air compressors are packed by export standard plywood case:

20150123_162426

Because of screw air compressor package volume and weight, most of our screw air compressors are shipped by sea.

download u=4

Wecome to contact us for more details, we will offer compressor details, oil free screw air compressor use manual, oil free screw air compressor configuration list, oil free screw air compressor instruction drawings, spare parts list, installation drawings, technical support and maintenance training.

Our Services

Long interval maintenance periods:

Nearly ideal isothermal compression, direct driven method, smart configuration and precision component design and machining, long bearing service life, all of the above essentially extends interval between regular periodical maintenance.
